100 – 4T Table Package Blowout

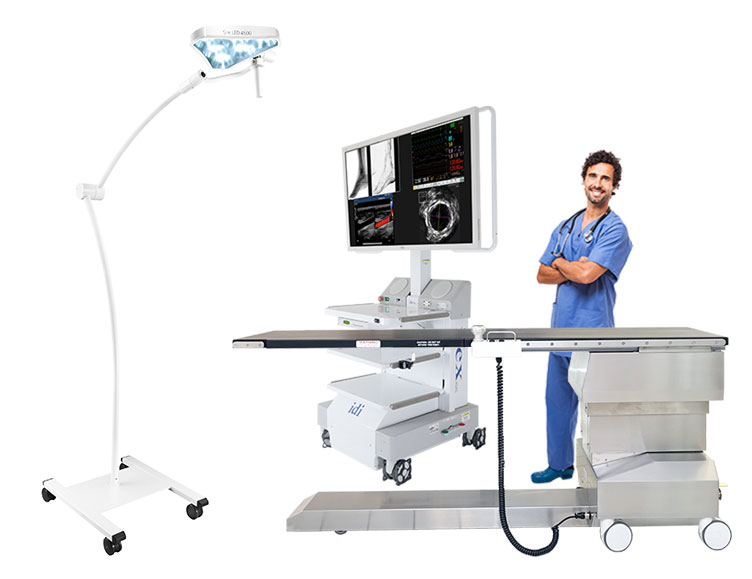

The package includes:

+ 100 – 4T G2 /Interventional / Endovascular Table
+ ilex55 Video Integration System
+ Simeon sim.LED 4500 O.R. Light
+ Installation

Package Price $72,000.00
A saving of $18,000.00

With our new G3 series tables coming online we have some remaining 100-4T G2 tables that we need to clear out of inventory.
The 100-4T series has been IDI’s #1 interventional/endovascular table for over 10 years. As of May 9, 2018 we have eleven 100-4T G2 tables available. We’ve packaged them with a new ilex55 video integration system and as an extra incentive, we’ll include one of our new Simeon sim.LED 4500 portable OR lights. And the package price includes installation!

The 100-4T G2 is an affordable solution for C-arm imaging in endovascular and other interventional procedures where a 4-way floating tabletop and trendelenburg tilt is desired.

  • Trendelenburg Tilt ( ±12°)
  • Transverse Float 8″ (20.3cm)
  • Motorized Elevation 10″ (25.4cm)
  • Longitudinal Travel 32″ (81.3cm)
  • Stainless steel covers

More about the ilex55 video integration system
More about the Simeon sim.LED 4500 O.R. light



100-4T G2 SPECIFICATIONS

Table movements

  • Elevate and Tilt functions are fully motor driven – no hydraulics!
  • Elevation: 32″ – 40″ (81-102cm), including 2″ (5cm) tabletop pad.
  • Trendelenburg Tilt: ±12° with  automatic “stop-at-level” positioning.
  • Lateral roll: ±12°, isocentric.
  • 4-way manual floating tabletop with panning hand control.
  • Longitudinal tabletop travel: 32” (81.3 cm).
  • Transverse tabletop travel: 8” (20.3 cm).
  • Automatic locking of longitudinal float when table is not level (head up or head down). Transverse float is available regardless of tilt or roll position.
  • Dual-wheel 6 caster system with 3-position locking system: total unlock, total lock, and steering lock (for easy transport).

Imaging Area

  • Imaging area at full longitudinal extension = 73″ (185cm) with optional headrest attached and 61″ (155 cm) without optional headrest attached.

Tabletop dimensions

  • Standard tabletop dimensions: 19.5”/22”/24” X 84”
    (49.5cm/55.8cm/60.96cm x 213.3 cm). #X100-2492
  • Optional tabletop dimensions: 22”/24” X 84”
    (55.8cm/60.9cm x 213.3 cm). #X100-2426

Weight:

  • Patient weight capacity: 450 lbs. (204 kg) with full table functionality at max. patient weight.
  • Table weight: 605 lbs. (274 kg).

Electrical:

  • Full operation on either AC or internal battery power.
  • 115 VAC or 230 VAC operation (must specify with order).
ilex55 BROCHURE
SIMEON sim.LED 4500 LIGHT BROCHURE
100-4T G2 TABLE MOTIONS

Trendelenburg tilt: ±12°



Aspect ISR Imaging Table▲ Longitudinal Travel: 32″ (81.3cm)

▲ Iso-roll 12°

▲ Transverse travel: 8″ (20.3cm)

100-4T G2 OPTIONAL ACCESSORIES

Clamp-on Accessory Rail A100-1007 Rail is 6″ long x 3/8” thick x 1-1/8” high.


Arm Board A310-056  Quick-release, rail mounted.  Requires Clamp-on Accessory Rail A100-1007.



Arm Board A310-059  Carbon fiber, shoulder mount (attaches by sliding thin section under patient/table pad), flat. Includes padand strap.



Multi-position Arm Support C000-1180  Attaches to IDI tables with accessory rails – or can be used with a clamp on accessory rail on tables or areas within a table that do not have accessory rails.  Length: 23.5 inches (600mm).


Headrest Extension A100-2317 Articulating carbon fiber headrest, Attaches to the imaging end of the table. Requires the table to have an X100-2492 style tabletop. 23-1/8” wide x 12” long.


Tabletop Catheter Tray Extension A100-1769   24.25” wide, 30” long. Mounts to pedestal end of table only. The maximum weight this extension can support is 20 LBS or 9 Kgs.


Tabletop Catheter Tray Extension A100-2322 20 3/4” x 27” long. Mounts to imaging end of table only. Requires tabletop X100-2492. The maximum weight this extension can support is 20 LBS or 9 Kgs.


Radiation Shield A610-051 Articulating, rail-mounted. Attaches to table side-rail at base end of table, either side, adjustable. Articulating joint allows shield to conform to table contour. Snap-on upper section above level of tabletop is removable.


Anesthesia Screen Holder C000-0965   Flexible “hoop” style. Mounts directly to A100-2317 Headrest Extension. For use on accessory rails – a pair of rotating side rail clamps, part number C000-0746, are required.  Rotating side rail clamps and clamp-on accessory rails are not required if table is ordered with the A100-2317 Headrest Extension.


Anesthesia Screen Holder C000-0973   Rigid rod, single point mount. Adjusts vertically from 22″ to 30″ and rotates horizontally.  (Requires one rotating side rail clamp C000-0746. If anesthesia screen is to be attached to tabletop area that has no side rail a clamp-on accessory rail is also required.


Peripheral Extension A100-2486  Carbon fiber extension, mounts to imaging end of table only. 22″ wide,, 12” long. Maximum weight for this extension is 25 lbs or 11.4 Kgs. – Requires tabletop X100-2492


100-4T Table Foot Switch with Safety Hood  A100-2360  Foot control for 100-4T table. Foot control motions are: transverse travel, elevate/lower and Trendelenburg down/up. (Safety hood helps avoid accidental motorized table movement from foot switch).


IDI Medical Grade Anti-Fatigue Mat  C000-1181  22” x 66” (59cm x 167cm)  Heavy-duty, one-piece construction for high-traffic  areas. Safe & non-toxic, contains no plasticizers and will not leach over time. Durable brushed texture. Surface is puncture & abrasion-resistant. Antimicrobial properties for added protection. Stain & chemical resistant. No-curl, beveled edges that reduce tripping potential. Non-slip bottom certified by the National Floor Safety Institute.


VAB Armboard  A100-2244   Carbon fiber, one-piece, extra wide armboard for vascular access procedures (body section slides under patient/table pad). Includes strap and pad.
