100-4T
Interventional / Endovascular Table
With 4-way Float & Trendelenburg
Choice of two tabletops
The 100-4T is designed to be the preferred imaging solution during interventional and vascular procedures.
The 100-4T provides longitudinal tabletop float of 32″ (81.2 cm) in a very compact platform enabling comprehensive coverage throughout the anatomical imaging area without C-arm movement – and does so in a table with an ideal overall length of only 84″.
With the addition of the optional head extension, the imaging area is increased to 80″ (203cm).
A high-quality carbon fiber tabletop and 2” thick tabletop pad deliver minimal total x-ray attenuation
Elevate and tilt functions are fully motor driven – no hydraulics – lower cost of service and no dangerous oil leaks!
▲ Trendelenburg tilt: ±12°
▲ Longitudinal Travel: 32″ (81.3cm)

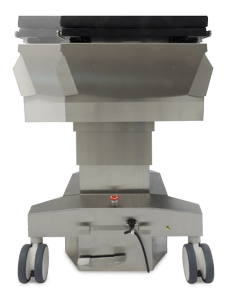

▲ Transverse travel: 8″ (20.3cm)
The 100-4T is an affordable solution for C-arm imaging in endovascular and other interventional procedures where a 4-way floating tabletop and trendelenburg tilt is desired. The 100-4T represents the ideal balance between performance and price in IDI’s imaging table line.
- 4-way Floating Tabletop
- 600 lbs (272 kg) patient weight capacity
- 80″ of imaging area with headrest
- Trendelenburg Tilt ( ±12°)
- Transverse Float 8″ (20.3cm)
- Motorized Elevation 13″ (33cm)
- Longitudinal Travel 32″ (81.3cm)
- Stainless steel covers
- Three year parts and labor warranty
Call 978-829-0009 to talk to a product expert
Choose from two tabletops
Standard Tabletop
100-4T #A100-2602 (U.S. Accessory Rails)
100-4T #A100-2831 (Metric Accessory Rails)
The standard tabletop 24”x 22”x 19.5”x 84” with mini-rails provides 68” of imaging area.
When equipped with the optional headrest or peripheral extension, the imaging area increases to 80″, allowing head-to-toe imaging on a 6’ 8” patient.
A high-quality carbon fiber tabletop and 2” thick tabletop pad deliver minimal total x-ray attenuation.
GI Width Tabletop
100-4T #A100-3890 (U.S. Accessory Rails)
100-4T #A100-3891 (Metric Accessory Rails)
The GI width 24” x 84” rectangular tabletop provides an expanded
surface for larger patients in GI and and specialized imaging applications.
The table includes full-length integrated side rails for accessory
mounting and one table-width extender.
The high-quality carbon fiber tabletop
and 2” thick tabletop pad delivers
minimal total x-ray attenuation.
100-4T BROCHURES
100-4T SPECIFICATIONS
Table movements
4-way manual floating tabletop with wireless panning hand control.
- Longitudinal tabletop travel: 32” (81.3 cm).
- Transverse tabletop travel: 8” (20.3 cm).
- Trendelenburg Tilt: ±12° with automatic “stop-at-level” positioning and longitudinal safety lockout when in trendelenburg.
- Table elevation: 30” – 43” (76 -109 cm) without tabletop pad. 32″ – 45″ (81 – 114 cm) with pad
- Transverse float is available regardless of tilt or roll position.
- Dual-wheel caster system. Simple central locking system for easy transport and positioning
- Automatic locking of longitudinal float when table is not level
Imaging Area
- Imaging area at full longitudinal extension = 80″ (203cm) with optional headrest attached and 68″ (173 cm) without optional headrest attached.
Tabletop construction
- Carbon fiber, foam core, low x-ray attenuation
construction
Standard accessories
- Tabletop Pad: 2″ thick flexible polyurethane foam.
- Wireless panning hand control, rail-mounted
- Wireless pendant hand control
- Patient Restraint Straps (2)
Tabletop dimensions
- Standard tabletop dimensions: 19.5”/22”/24” X 84”
(49.5cm/55.8cm/60.96cm x 213.3 cm). #X100-2492
Weight:
- Patient weight capacity: 600 lbs. (272 kg) with full table functionality at max. patient weight.
- Table weight: 605 lbs. (274 kg).
Electrical:
- 120VAC < 10amps, 230V optional.
- Full operation from internal battery – includes battery status indicator. Battery capacity 14Ah
- 20’ (6 meter) power cord.
WHY THE 100-4T STANDS OUT FROM THE COMPETITION
600 pound patient weight capacity – Standard
No additional costs or up-charges
Unprecedented 80″ imaging area
(with optional headrest)
Allows full body imaging of a 6′-8″ patient
Choice of two tabletops
Standard Tabletop
G.I. Width Tabletop
Wireless table control at your fingertips
Panning and motorized functions are combined into one easy-to-use wireless control handle. No need to switch between a pendant and panning control
Low-dose table top and pad
Reduces overall dose to patient and staff
Mini rail system on head end of table
Install or remove the headrest or extensions in seconds – no additional accessories required.
WIRELESS PENDANT HAND CONTROL & WIRED TABLE-SIDE PANNING CONTROL (RAIL-MOUNTED)
and instant-on functionality when batteries run down, and the table is plugged in.
The lowest profile base in the industry
For improved C-Arm access
100-4T OPTIONAL ACCESSORIES
Curve Spine Frame C000-1750
Provides maximum lordosis for Laminectomy,
Decompression, Disc Surgery and Microdiscectomy
procedures. Includes hand crank. Patient supports are adjustable to fit different patient sizes.
Clamp-on Accessory Rail A100-1007
Rail is 8.5″ long x 3/8” thick x 1-1/8” high..
Arm Board A310-056
Quick-release, rail mounted. Requires Clamp-on Accessory Rail A100-1007
Headrest Extension A100-2317 Articulating carbon fiber headrest, Attaches to the imaging end of the table. Requires the table to have an X100-2492 style tabletop. 23-1/8” wide x 12” long.
Tabletop Catheter Tray Extension A100-1769
24.25” wide, 30” long. Mounts to pedestal end of table only. The maximum weight this extension can support is 20 LBS or 9 Kgs.
Tabletop Catheter Tray Extension A100-2322
20 3/4” x 27” long. Mounts to imaging end of table only. Requires tabletop X100-2492. The maximum weight this extension can support is 20 LBS or 9 Kgs.
Radiation Shield A610-051
Articulating, rail-mounted. Attaches to table side-rail at base end of table, either side, adjustable. Articulating joint allows shield to conform to table contour. Snap-on upper section above level of tabletop is removable.
Anesthesia Screen Holder C000-0965 Flexible “hoop” style. Mounts directly to A100-2317 Headrest Extension. For use on accessory rails – a pair of rotating side rail clamps, part number C000-0746, are required. Rotating side rail clamps and clamp-on accessory rails are not required if table is ordered with the A100-2317 Headrest Extension.
Peripheral Extension A100-2486
Carbon fiber extension, mounts to imaging end of table only. 22″ wide,, 12” long. Maximum weight for this extension is 25 lbs or 11.4 Kgs. – Requires tabletop X100-2492
IDI Medical Grade Anti-Fatigue Mat C000-1181
24”(610mm) x 66”(1676mm) x ¾” (19mm) Heavy-duty, one-piece construction for high-traffic areas. Safe & non-toxic, contains no plasticizers and will not leach over time. Durable brushed texture. Surface is puncture & abrasion-resistant. Antimicrobial properties for added protection. Stain & chemical resistant. No-curl, beveled edges that reduce tripping potential. Non-slip bottom certified by the National Floor Safety Institute.
VAB Armboard A100-2244
Carbon fiber, one-piece, extra wide armboard for vascular access procedures (body section slides under patient/table pad). Includes strap and pad.
Patient Restraint Strap A100-3731
(For Standard Float Tabletop)
Set of two patient restraint straps with buckle locking mechanism and one pad for patient safety and comfort.
Patient Restraint Strap A100-3883
(For G.I. Width Top)
Patient restraint strap with hooks to attach to accessory rails on each side of the tabletop, a pad for patient safety and comfort and buckles to adjust to the patient girth.
