100UCPLUS
The market leading mobile table for Urology

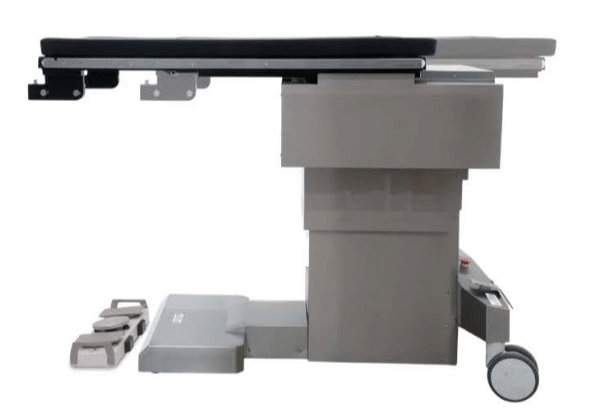

The 100UC Plus is a full-function mobile urology table, featuring motorized four-way travel, elevation, and Trendelenburg Tilt. The UC Plus provides a large radiolucent imaging area for greater anatomic coverage and easy C-Arm access. With a 28”-wide tabletop, large patients can be safely positioned and supported up to the 525-pound capacity. The carbon fiber tabletop provides minimal x-ray attenuation over the entire imaging area. A built-in cassette tray and along with a wide assortment of urologic accessories provide for multi-purpose use in both x-ray imaging and general urologic procedures.

KEY FEATURES

  • Large C-Arm imaging area
  • Built-in .5mm lead shielding; helps reduce scatter exposure to physician
  • Motorized elevation
  • Trendelenburg Tilt
  • Longitudinal and transverse tabletop motion

ACCESSORIES INCLUDED

  • Tabletop Pad, 2” thick
  • Tabletop Extension with 2” thick pad

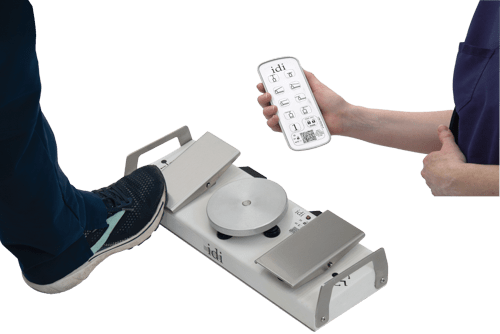

  • Hand control pendant & foot switch control
  • Removable Drain Bag Support Hoop
  • Disposable drain bag and hose assembly, box of 20
  • Removable Radiation Shield Flap for perineal end of table
  • Patient Restraint Straps (2)
  • Armboard, rail mounted, with pad and strap
  • Disposable covers for footswitch, box of 50

Or call (877) 304-5434 to talk to a product expert

100UCPLUS TABLE MOTIONS

Transverse travel ±3.5″ (8.9cm) ▲

Longitudinal travel 10″ (25.4cm) ▲

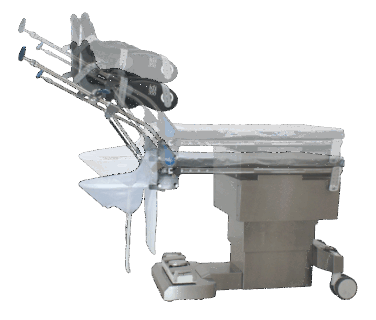

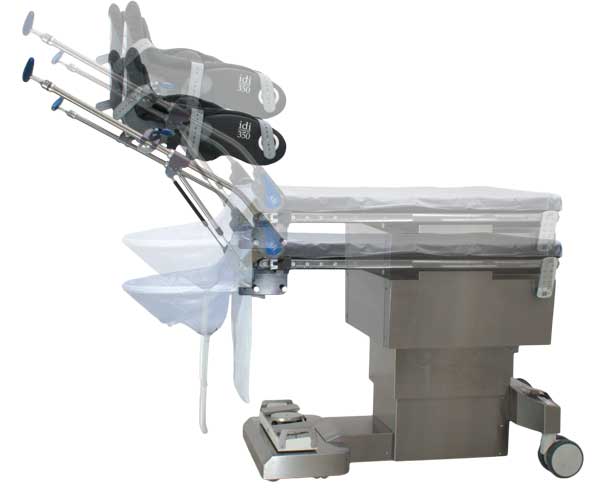

Table elevation: 11.8″ (30cm) ▲

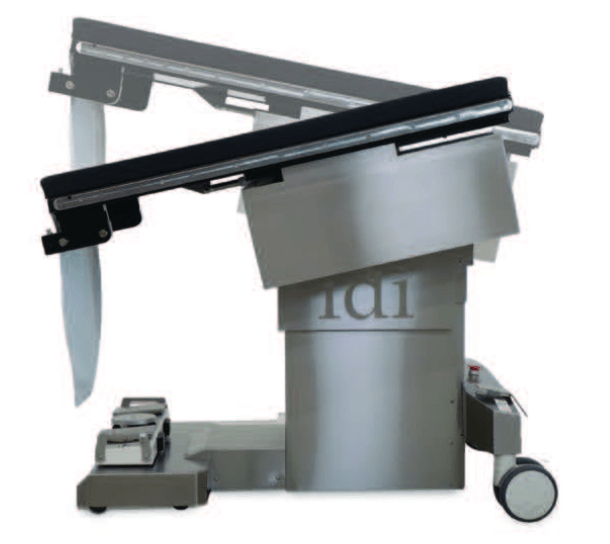

Trendelenburg tilt ±15°▲

100UCPLUS VIDEO
https://www.youtube.com/watch?v=WnA-1S6g7XY
100UCPLUS SPECIFICATIONS

Motorized table movements (via hand control and foot switch control)

  • Elevation: 33.3” – 43.1”
(84.5 – 109.4 cm) with tabletop pad
  • Trendelenburg Tilt ± 15°
  • Longitudinal tabletop travel = 10” (25.4cm)
  • Transverse tabletop travel = ± 3.5, 7″ total (±8.9 cm, 17.8cm total)

Tabletop and extension

  • Carbon fiber tabletop with low x-ray attenuation

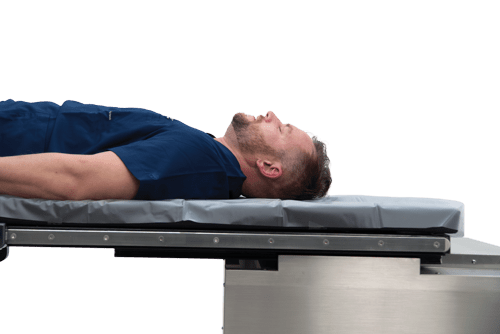

  • 2″ (5cm thick tabletop & tabletop extension pads with memory foam construction and waterproof cover
  • Tabletop dimensions: 28”W x 46”L ( 71 x 117 cm)

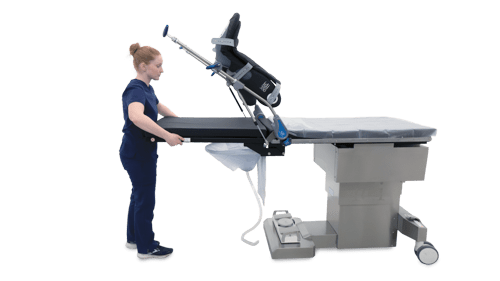

  • Radiolucent tabletop extension: 24”W x 34”L (61 x 86 cm)
  • Imaging area, main tabletop: 25”W x 20”L (63.5 x 50.8 cm)
  • Imaging area, tabletop extension: 24”W x 34”L (61 x 86 cm)

Included

  • Built-in foot switch storage tray
  • Removable radiographic cassette tray, loads from either side of table
  • Standard US side-rails for accessory attachments on main tabletop
  • Tabletop Pad, 2” thick, waterproof
  • Tabletop Extension, with pad

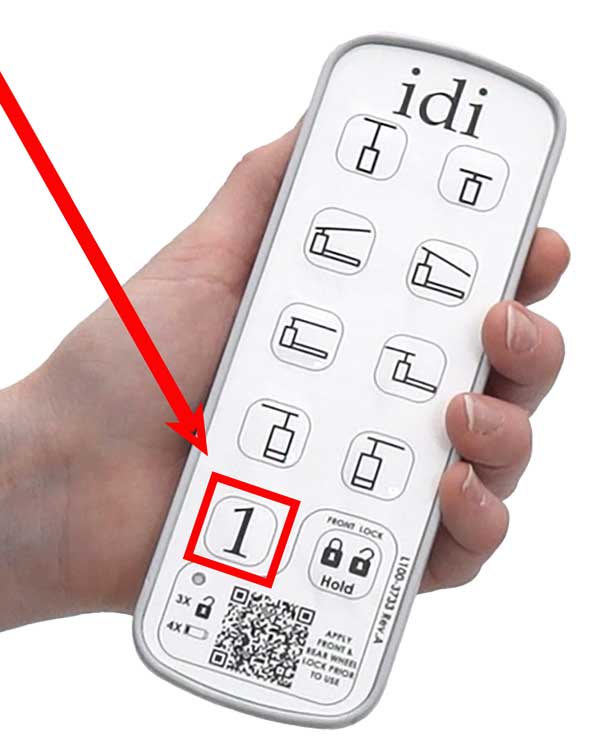

  • Hand control pendant
  • Foot switch control
  • Drain Bag Support Hoop
  • Disposable drain bag and hose assembly, box of 20
  • Removable Radiation Shield Flap for perineal end of table
  • Patient Restraint Straps (2)
  • Arm board (1), rail mounted, with pad and strap
  • Disposable covers for foot switch, box of 50

Mechanical & electrical specifications

  • Locking swivel casters, 5” (12.7 cm), for easy transport
  • Patient weight capacity: 525 lbs.  (238 kg)
  • Table weight: 670 lbs. (304 kg)
  • 120 VAC or 230 VAC operation 10 amp max. required at 110V (must  specify on order)
  • Battery back-up operation
  • Warranty: 3 years parts, 1 year labor

Patient weight capacity:

  • With patient upper body on main tabletop: 525 lbs.(238 kg)
  • With patient upper body on extension: 400 lbs. (181 kg)
  • Load capacity on extension only: 200 lbs. (113.4 kg)
100UCPLUS OPTIONAL ACCESSORIES

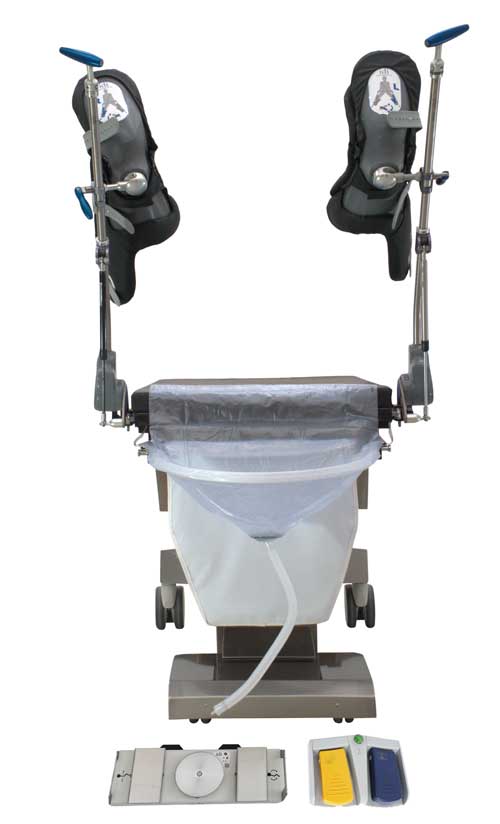

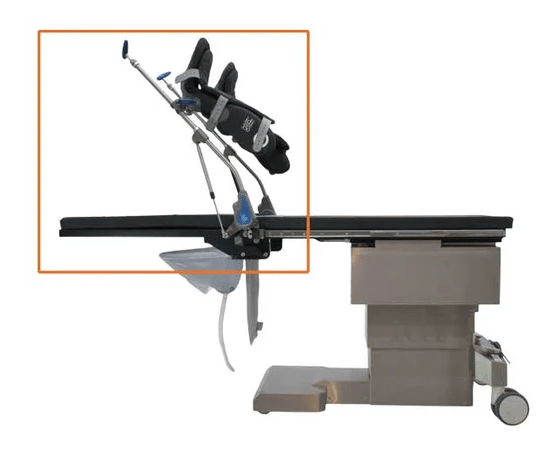

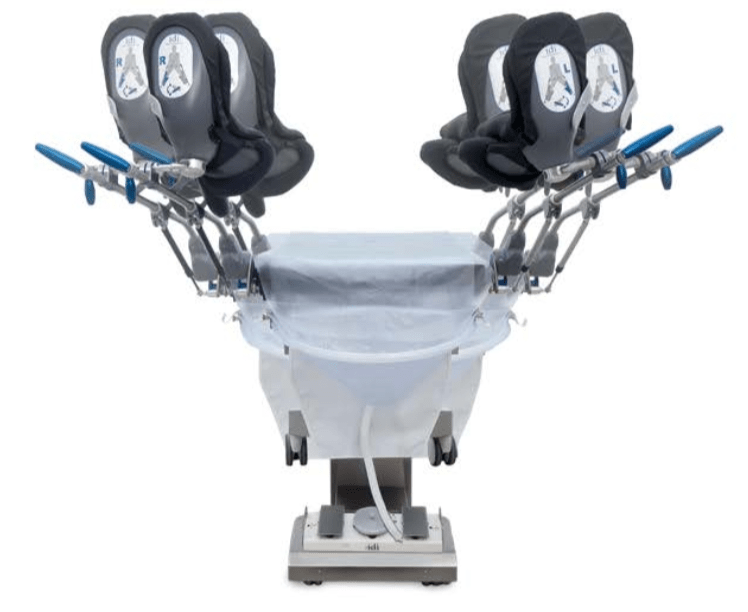

Lithotomy Legholders (pair) Boot style A100-2246
Pneumatic assist with one-hand adjustment, with pads. For patients up to 350 lbs (158kg). Includes pair of side-rail clamps.



Heavy Duty Lithotomy Legholders (pair) A100-2247

Heavy Duty, boot style, pneumatic assist with onehand adjustment, with pads. For patients up to 525 lbs (238kkg). Includes pair of side-rail clamps.


Physician Elbow Supports (pair) C000-0594
Removable


ArmboardA310-056
Rail mounted, with pad and strap 1 arm board included with table.


Clamp-on Accessory Rail A100-2218
For use with 100UC Extension. Rail is 6″ long x 3/8” thick x 1-1/8” high.


Split Leg HoldersC000-1146
For use with Aspect 100UC Plus Tables. Includes pads. Prone percutaneous, lateral or modified lateral nephrostomy. Includes two split leg holder clamps # C000-1115.


Replacement Split Leg Holder Clamp C000-1115
For use with split leg holders. # C000-1146


Multi-position Arm Support  C000-1180
Attaches to IDI tables with accessory rails – or can be used with a clamp on accessory rail on tables or areas within a table that do not have accessory rails.  Length: 23.5 inches (600mm).

100UCPLUS CONSUMABLES

Urology Table Pad Protector  C000-0645

Box of 20  Urology tabletop pad protector for Aspect 100U, 100UC and 100UCPlus tables.  Protects the table – during and after use. Helps prevent damage to table pad in between cases or at end of day during cleaning.

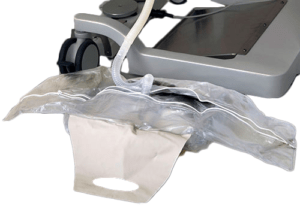

Disposable Urology Drain Bag and Hose

Box of 20.  Custom designed for IDI Urology tables, our urology drain bags fit the Drain Bag Support Hoop used with Aspect 100U, 100UC and 100UCPlus tables. Includes an extended table flap to help channel fluids from the table top into the drain bag and two hose adapters for connection to common tubing sizes for use suction/fluid management equipment.


Disposable Covers  C000-0492

For Aspect 100UCPlus
Foot Controls
24” x 20” Box of 50


Uro Collection Unit – 15 liter capacity C000-1307

Box of 10 Uro Collec6on Unit 15 liter capacity, Box of 10. Flexible plastic sided container expands into a cube as it collects waste fluid when floor drain or suction is unavailable. Internal baffle system enables container to fill evenly as powder converts liquid to gel. Integrated valve system allows user to shut off the flow of liquid from the drain bag in order to change collection units.

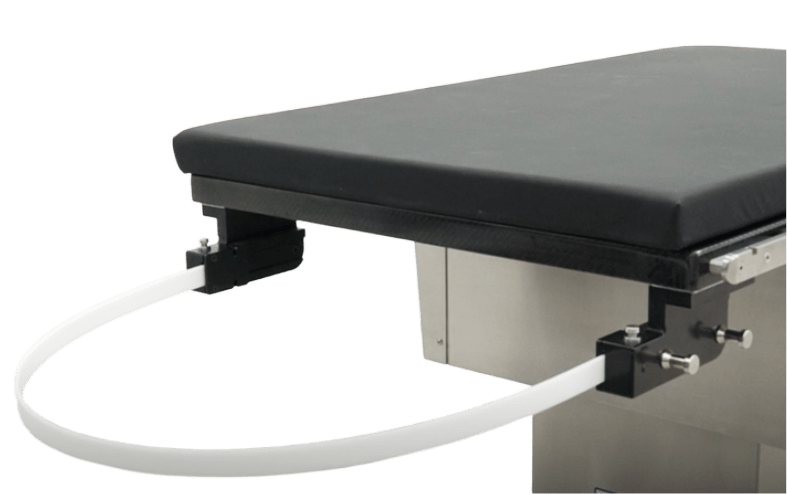

Uro Drain Support Hoop  C000-0595
Collapsable & removable drain bag support hoop


3-inch/ 76mm Restraint Straps C000-0571

(Pair)
Fabric with velcro fasteners for Aspect 100UCPlus table.


Restraint Straps
C000-0328
One each 3” and 5” (76mm and 127mm)
Fabric with velcro fasteners for Aspect 100UCPlus table.


Uro Collection Unit C000-0612
5 gallon/18.9 liter capacity capacity, Box of 10. Soft sided Vinyl container gently expands into a cube as it collects waste fluid when floor drain or suction is unavailable. Internal baffle system enables container to fill evenly as powder converts liquid to gel. Built in zipper and handles allow for storage, closure of drain bag and hose assembly for enhanced infection control during transport and disposal.
