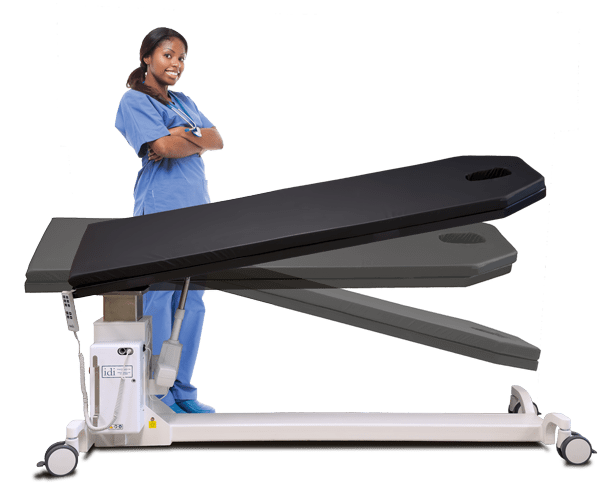

100RTL
Table for GI and pain management procedures



C-Arm table for GI and pain management procedures where tilt, roll and longitudinal tabletop movement is desired.

  • Motorized elevation
  • Trendelenburg Tilt
  • Lateral Roll
  • Longitudinal tabletop movement (power driven)

ACCESSORIES INCLUDED

  • Pendant Hand Control
  • Tabletop Pad, 2″
  • Patient Restraint Straps
  • Facial cushion, crescent shape

Disposable covers for facial cushion, box of 50

Call 978-829-0009 to talk to a product expert

100RTL OPTIONAL ACCESSORIES

Curve Spine Frame C000-1750

Provides maximum lordosis for Laminectomy, Decompression, Disc Surgery and Microdiscectomy procedures. Includes hand crank. Patient supports are adjustable to fit different patient sizes.


Clamp-on Accessory Rail A100-1007
Rail is 8.5″ long x 3/8” thick x 1-1/8” high.



Side-rail clamp C000-0746

Rotating, with socket for attachment of accessories with 5/8 inch circular post.



Scatter Guard radiation shield draping A610-108
For 28” (71cm)wide Optional Tabletop X100-1325 28”x80” (71x203cm) Dimensions: 59” long. 24” draping below tabletop. Draping extends along both sides and head-‐end of table. Supported by fabric section over tabletop. Not for use with arm board A310-056.


Scatter-Guard radiation shield draping A610-096
For for 24” rectangular tabletop X100-995. Dimensions: 59” long. 24” draping below tabletop. Draping extends along both side and head-end of table. Supported by fabric section over tabletop Note: Not for use with arm board A310-056.



Arm Board A310-056

Quick-release, rail mounted. Requires Clamp-on Accessory Rail A100-1007.


Radiation Shield A610-080
Fixed radiation shield with an integrated clamp system. For use with tables that do not have side rails. Clamps to table sides or at the head-end of the table. Snap-on upper section above the level of the tabletop is removable. Use with 100RTL, 100RT, 100T, 100E tables.



Scatter-Guard radiation shield draping A610-092
For 22” tabletop X100-733 models with 22” tapered-end tabletop with facial cutout. Dimensions: 59” long. 24” draping below tabletop. Draping extends along both side and head-end of table. Supported by fabric section over tabletop. Note: Not for use with arm board A310-056.



IDI Medical Grade Anti-Fatigue Mat C000-1181

24”(610mm) x 66”(1676mm) x ¾” (19mm) Heavy-duty, one-piece construction for high-traffic areas. Safe & non-toxic, contains no plasticizers and will not leach over time. Durable brushed texture. Surface is puncture & abrasion-resistant. Antimicrobial properties for added protection. Stain & chemical resistant. No-curl, beveled edges that reduce tripping potential. Non-slip bottom certified by the National Floor Safety Institute.


Arm Board A310-059
Carbon fiber, shoulder mount (attaches by sliding thin section under patient/table pad), flat. Includes pad and strap.


Facial Cushion, crescent shape  C000-0597
Covers: C000-0598
Facial Cushion, crescent shape. Disposable covers for facial cushion, box of 50.


Hand Control for 100RTL Table  K000-0197
Verify table serial # with IDI for compatibility). Motions controlled: Elevation, trendelenburg, roll, slide. (Included with table).


Foot Control for 100RTL   A100-1961
Foot Control unit controls all table
motions.


A100-3731

Patient Restraint Strap A100-3731
(For Standard Float Tabletop)
Set of two patient restraint straps with buckle locking mechanism and one pad for patient safety and comfort.

100RTL FEATURES / SPECIFICATIONS

Table movements

    • Motorized Elevation: 31.2 – 41.2” (79.2 – 104.6 cm) with 2″ tabletop pad
    • Trendelenburg Tilt ( ±15°)
    • Lateral Roll ( ±20°)
    • 10″ Longitudinal tabletop movement (power driven)

Features

    • Cantilevered, carbon fiber tabletop with low x-ray attenuation
    • Choice of tabletops:
      • Standard: 24” x 80” (61 x 203 cm)
      • Optional: 22″ x 80″ (56 x 203cm) with tapered end and facial cutout
      • Custom: 28″ x 80″ (71cm x203cm) for larger patients
    • Unobstructed imaging area: 59” (149.9 cm)
    • Motorized Elevation 32.2″- 41.2” (79 – 104.6 cm)
    • Trendelenburg Tilt ( ±15°)
    • Longitudinal tabletop travel: 10” (25.4 cm)
    • Locking swivel casters
    • Patient weight capacity: 450 lbs. (204 kg)
    • Table weight: 355 lbs. (161 kg)
    • 120 VAC or 230 VAC operation (must specify on order)
    •  Battery back-up operation
    • Warranty: 3 years parts, 1 year labor

Accessories included:

    • Pendant Hand Control
    • Tabletop Pad, 2″
    • Patient Restraint Straps
    • Facial cushion, crescent shape
    • Disposable covers for facial cushion, box of 50
