100T
For pain management and other procedures

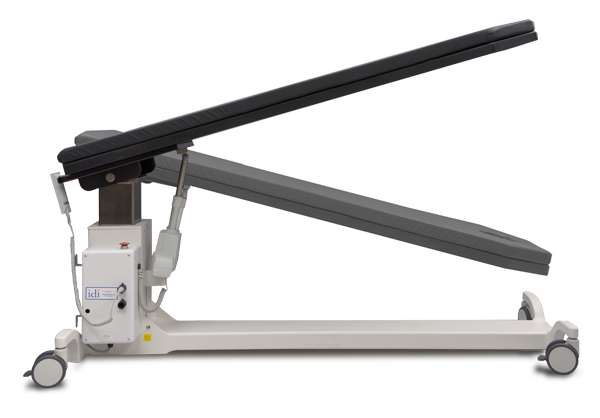

C-arm table for pain management and other procedures where only motorized elevation and Trendelenburg tilt is required.

  • Motorized elevation
  • Trendelenburg Tilt

ACCESSORIES INCLUDED

  • Pendant Hand Control
  • Tabletop Pad, 2″
  • Patient Restraint Straps
  • Facial cushion, crescent shape
  • Disposable covers for facial cushion, box of 50

Or call (877) 304-5434 to talk to a product expert

100T OPTIONAL ACCESSORIES

Clamp-on Accessory Rail A100-1007
Rail is 6″ long x 3/8” thick x 1-1/8” high.



Side-rail clamp C000-0746

Rotating, with socket for attachment of accessories with 5/8 inch circular post.



Scatter Guard radiation shield draping A610-108
For 28” (71cm)wide Optional Tabletop X100-1325 28”x80” (71x203cm) Dimensions: 59” long. 24” draping below tabletop. Draping extends along both sides and head-‐end of table. Supported by fabric section over tabletop. Not for use with arm board A310-056.


Scatter-Guard radiation shield draping A610-096
For for 24” rectangular tabletop X100-995. Dimensions: 59” long. 24” draping below tabletop. Draping extends along both side and head-end of table. Supported by fabric section over tabletop Note: Not for use with arm board A310-056.



Arm Board A310-056

Quick-release, rail mounted. Requires Clamp-on Accessory Rail A100-1007.


Multi-position Arm Support C000-1180
Attaches to IDI tables with accessory rails – or can be used with a clamp on accessory rails A100-1007 or A100-2379. Length: 23.5 inches (600mm).



Radiation Shield
 A610-080

Radiation Shield
Fixed shield with integrated clamp system. For use with
tables that do not have side rails. Clamps to table sides or at head-end of table. Snap-on upper section above level of tabletop is removable. Use with 100RTL, 100RT, 100T, 100E tables.



Scatter-Guard radiation shield draping
A610-092
For 22” tabletop X100-733 models with 22” tapered-end tabletop with facial cutout. Dimensions: 59” long. 24” draping below tabletop. Draping extends along both side and head-end of table. Supported by fabric section over tabletop. Note: Not for use with arm board A310-056.



IDI Medical Grade Anti-Fatigue Mat C000-1181

22” x 66” (59cm x 167cm) Heavy-duty, one-piece construction for high-traffic areas. Safe & non-toxic, contains no plasticizers and will not leach over time. Durable brushed texture. Surface is puncture & abrasion-resistant. Antimicrobial properties for added protection. Stain & chemical resistant. No-curl, beveled edges that reduce tripping potential. Non-slip bottom certified by the National Floor Safety Institute.


Arm Board A310-059
Carbon fiber, shoulder mount (attaches by sliding thin section under patient/table pad), flat. Includes pad and strap.


Facial Cushion, crescent shape  C000-0597
Covers: C000-0598
Facial Cushion, crescent shape. Disposable covers for facial cushion, box of 50.


IDI-K000-0054 Hand Control for 100R 100T
Pendant Hand Control for 100T Table  K000-0054
Motions controlled: Elevation, trendelenburg tilt. Included with table.

100T Footswitch

Foot Control for 100T   A100-500
Motions controlled: Elevation, trendelenburg tilt.

100T SPECIFICATIONS

Motorized table movements with hand  control

  • Elevation: 30 – 41.8” (76 – 106 cm) with 2″ tabletop pad
  • Trendelenburg Tilt: ±15°

Tabletops

  • Cantilevered, carbon fiber tabletop with low x-ray attenuation
  • Choice of tabletops:
    • Standard: 24” x 80” (61 x 203 cm)
    • Optional: 22″ x 80″ (56 x 203cm) with tapered end and facial cutout
    • Custom: 28″ x 80″ (71cm x203cm) for larger patients
  • Unobstructed imaging area: 62” (157.5  cm)

Mechanical/electrical specifications

  • Locking swivel casters
  • Patient weight capacity: 450 lbs. (204 kg)
  • Table weight: 325 lbs. (147 kg)
  • 120 VAC or 230 VAC operation  (must  specify on order)
  • Battery back-up operation
  • Warranty: 3 years parts, 1 year labor

Accessories included:

  • Pendant Hand Control
  • Tabletop Pad, 2″
  • Patient Restraint Straps
  • Facial cushion, crescent shape
  • Disposable covers for facial cushion, box of 50
