Compass Flex Mobile Suspension System
Compass Flex

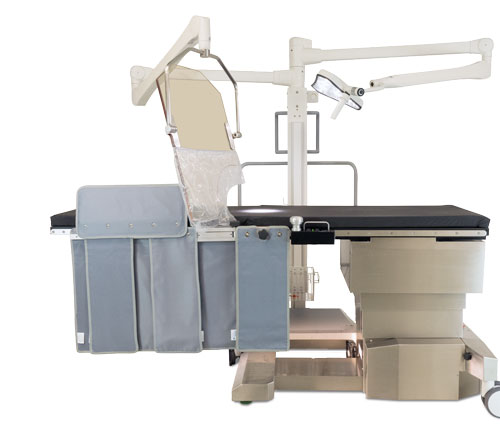

Compass Flex mobile suspension system
Radiation Shield, Exam Light and Monitor Mount on wheels

The Compass Flex™ Suspension System provides the tools you need in your mobile imaging suite. Two flexible arms provide radiation shielding and lighting, and the central post can accommodate up to two video monitors. Best of all, the Compass Flex Suspension System is mobile, making it a low-cost, instant addition to any C-arm set up. 0.5mm lead equivalency rating.


More about the Compass Flex



A280-1189 – no monitor

  • No video inputs

A280-1190 – 32” HD Monitor

  • DVI and SOG/BNC for GE OEC 9800/9900 C-Arms

A280-1191 – 32” 4k Monitor

  • DVI or HDMI or DisplayPort

A280-1192

  • Dual 27” HD Monitors
Protego Shield System

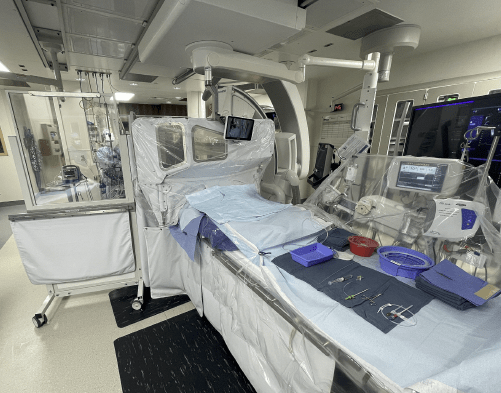

Protego Clincal
Protego Shielding System

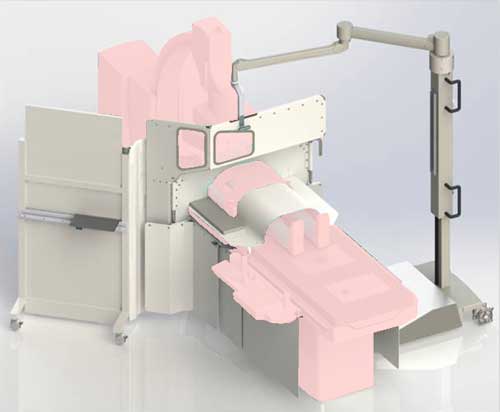

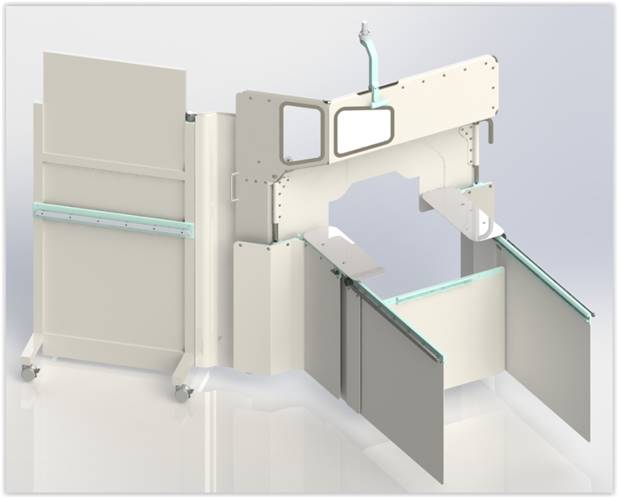

Protego™ Radiation Protection System


A compact radiation barrier system for use in cardiac cauterization labs. Provides a protective barrier from primary x-ray radiation as well as secondary scatter radiation. Reduces the need for heavy leaded protective clothing.

0.5mm lead equivalency rating.


More about Protego

Catalog # A800-0004

For metric tables with 30″-35″ rail width including Siemens Artis or Zeego interventional radiology systems

Catalog # A800-0006 for metric tables with a rail width of 24″ -28″ including Philips XXXXXX tables.



Scatter Guard radiation shield draping – .5mm lead
equivalence

For 28” (711mm) wide optional tabletop X100-1325
. Dimensions: 59” (1500mm) long, 24” (610mm) below tabletop. Draping extends along both sides and head-‐end of table. Supported by fabric section over tabletop. Not for use with arm board A310-056.

A610-108

Radiation Shield – .5mm lead equivalence

Fixed shield with integrated clamp system. For use with
tables that do not have side rails. Clamps to table sides or at head-end of table. Snap-on upper section above level of tabletop is removable. Use with 100RTL, 100RT, 100T, 100E tables. 24” wide x 32-1/8” high x 4” deep.

Catalog # A610-080

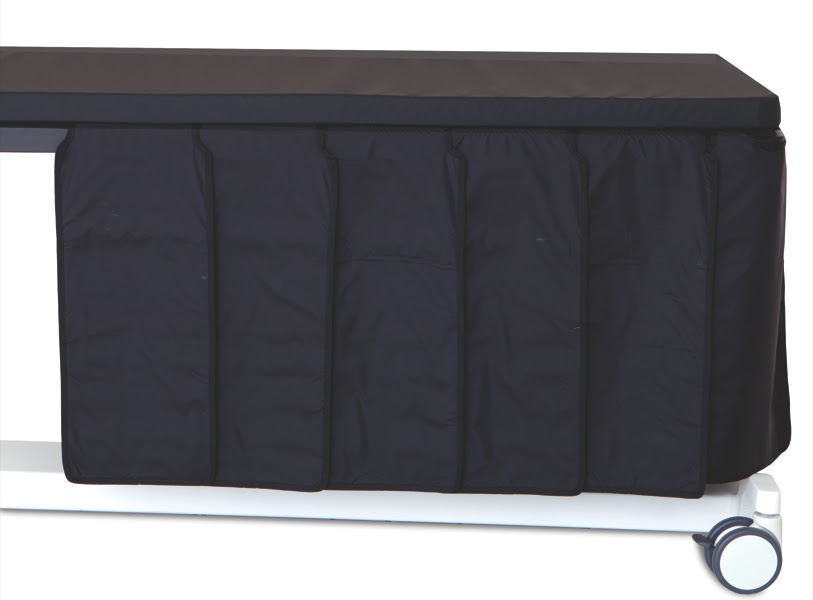

Scatter-Guard radiation shield draping – .5mm lead equivalence

For for 24” (610mm) rectangular tabletop X100-995. Dimensions: 59” (1500mm) long. 24” (610mm) draping below tabletop. Draping extends along both side and head-end of table. Supported by fabric section over tabletop Note: Not for use with arm board A310-056.

Catalog # A610-096

Scatter-Guard radiation shield draping - .5mm lead equivalence

Scatter-Guard radiation shield draping – .5mm lead equivalence

For 22” (559mm) tabletop X100-733 models with 22” (559mm) tapered-end tabletop with facial cutout. Dimensions: 59” (1500mm) long. 24” (610mm) draping below tabletop. Draping extends along both side and head-end of table. Supported by fabric section over tabletop. Note: Not for use with arm board A310-056.

 Catalog # A610-092

Radiation Shield - .5mm lead equivalence
 A610-051

Radiation Shield – .5mm lead equivalence


Articulating, rail-mounted. Attaches to table side-rail at base end of table, either side, adjustable. Articulating joint allows shield to conform to table contour. Snap-on patient side upper section is removable.
41-⅜” wide x 32-⅛” high x 2-⅝” deep.

Catalog # A610-051

Catalog # A610-106
For metric accessory rail tables

Compass Contour Radiation Shielding

Compass Contour Radiation Shield


Contoured ceiling suspended acrylic barrier radiation protection with a lead equivalence of .5mm. Enhance eye, head and neck protection from x-ray scatter. Shielding area is ~30” (76cm) x 23.5” (60cm) with a 10” radius along the bottom edge of the leaded acrylic shield. Does not include ceiling
suspension arm.

Catalog # A610-0200



Compass Contour drape X610-0209

Compass Contour Drape

Custom shaped drape for the Compass Contour Radiation Shield. Slips over the lower portion of the shield and is held in place with an elastic band. Sterile. Case of 20.

Catalog # X610-0208



Compass Frame Radiation Shield

Compass Frame Radiation Shield

Rectangular ceiling suspended acrylic barrier radiation protection with a lead equivalence of .5mm. Enhance eye, head and neck protection from
x-ray scatter. Shielding area is ~ 30” (76cm) x 23.5” (60cm). Does not include ceiling suspension arm.

Catalog # A610-0215



Compass Frame Drape X610-0209

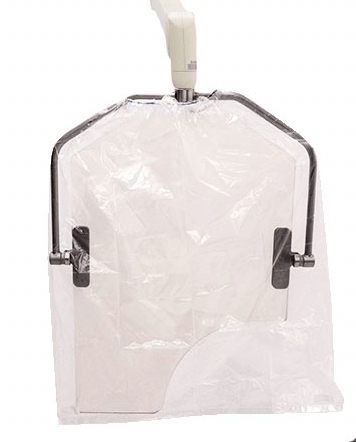

Compass Frame Drape

Custom shaped drape for the Compass Frame Radiation Shield. Slips over the lower portion of the shield and is held in place with an elastic band. Sterile. Case of 20.

Catalog # X610-0209
