100 – 4
Interventional / Endovascular Table
Now with Wireless Table-side & Pendant Panning Controls
Choice of two tabletops
600 lb. patient weight capacity
Provides surgical articulation in a four-way manual float table

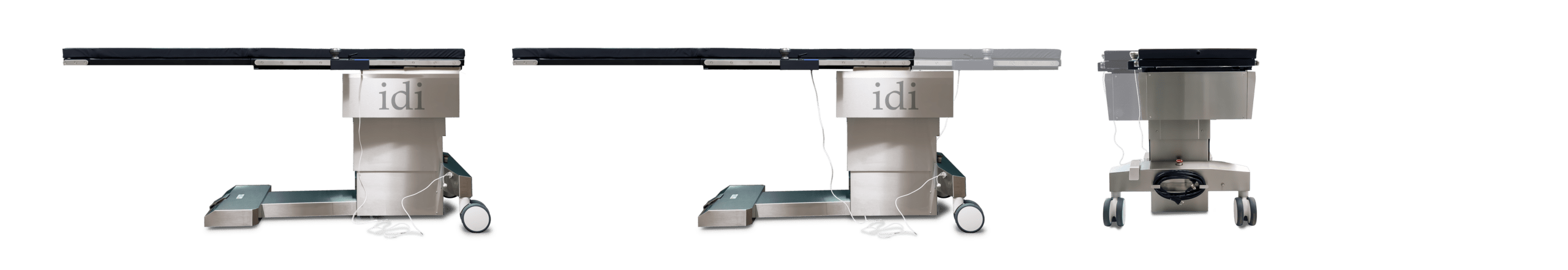

The 100-4 table is designed for C-arm imaging in endovascular or other interventional procedures where a 4-way floating tabletop is required in a non-tilting table.
Features
-
Cantilevered, carbon fiber tabletop with low x-ray attenuation
-
Standard Tabletop dimensions: 22” (559mm) x 24” (610mm) x 84” (2134mm)
- G.I. Width Tabletop dimensions: 24″ x 84″
-
Unobstructed imaging area:
• 68”/ 173cm
• 80” / 203cm with optional peripheral extension (Standard Tabletop) -
Motorized Elevation: 30” – 43” (76 -109 cm)
-
4-way manual floating tabletop with panning hand control
-
Longitudinal tabletop travel: 32” (81.3 cm)
-
Transverse tabletop travel: 8” (20.3 cm)
-
Locking swivel casters
- Patient weight capacity: 600 lbs. (272 kg)
- Table weight: 800 lbs. (363 kg)
- 115/230 VAC <6 amps
- Full functionality battery backup
- Warranty: 3 years parts, 3 years labor
Accessories included:
- Wireless panning hand control, rail-mounted
- Wireless pendant hand control
- Tabletop Pad
- Patient Restraint Straps
Choose from two tabletops

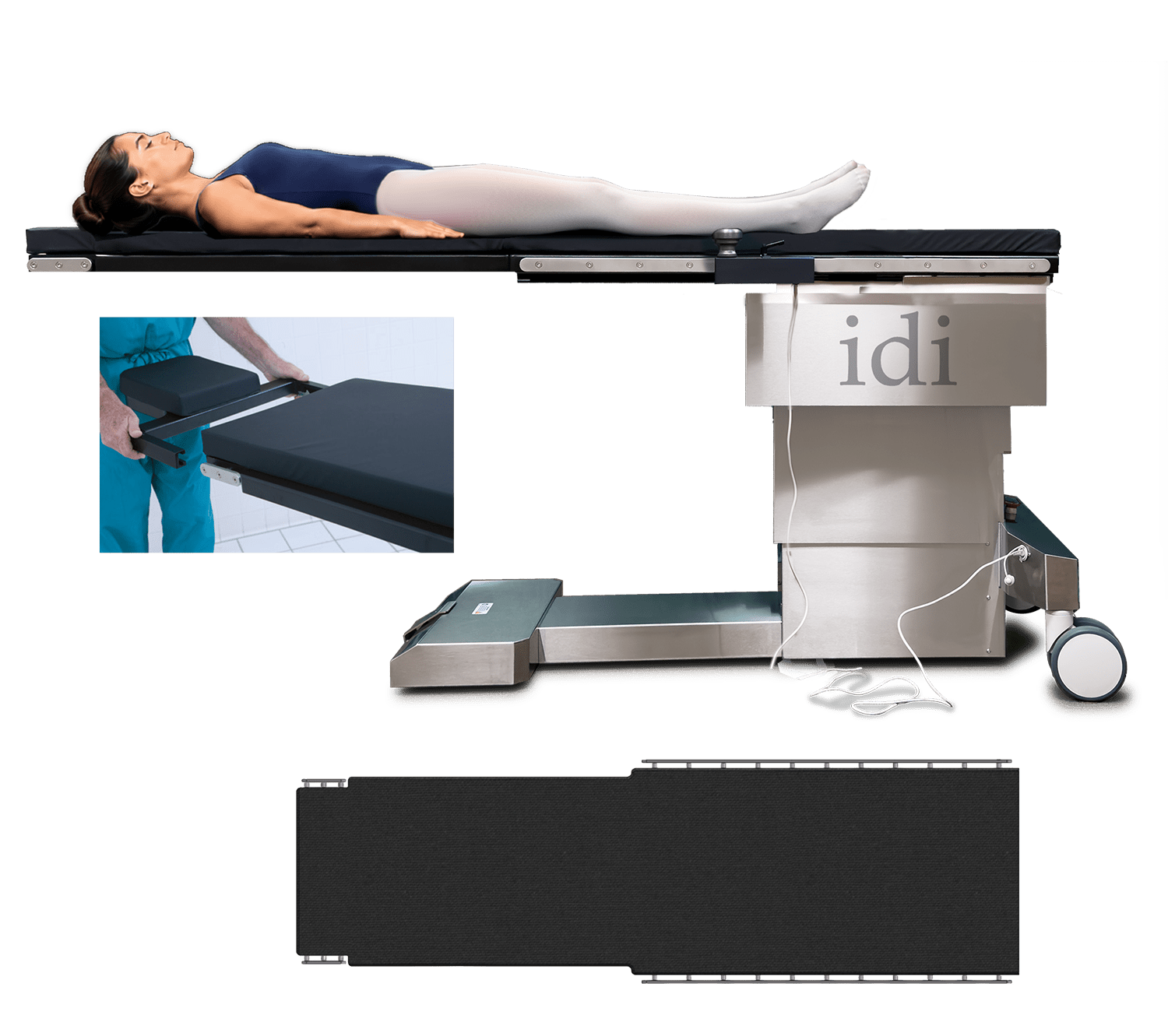

Standard Tabletop
100-4T #A100-3247 (U.S. Accessory Rails)
100-4T #A100-3296 (Metric Accessory Rails)
The standard tabletop 24”x 22”x 19.5”x 84” with mini-rails provides 68” of imaging area.
When equipped with the optional headrest or peripheral extension, the imaging area increases to 80 inches, allowing head-to-toe imaging on a 6’ 8” patient.
A high-quality carbon fiber tabletop and 2” thick tabletop pad deliver minimal total x-ray attenuation.

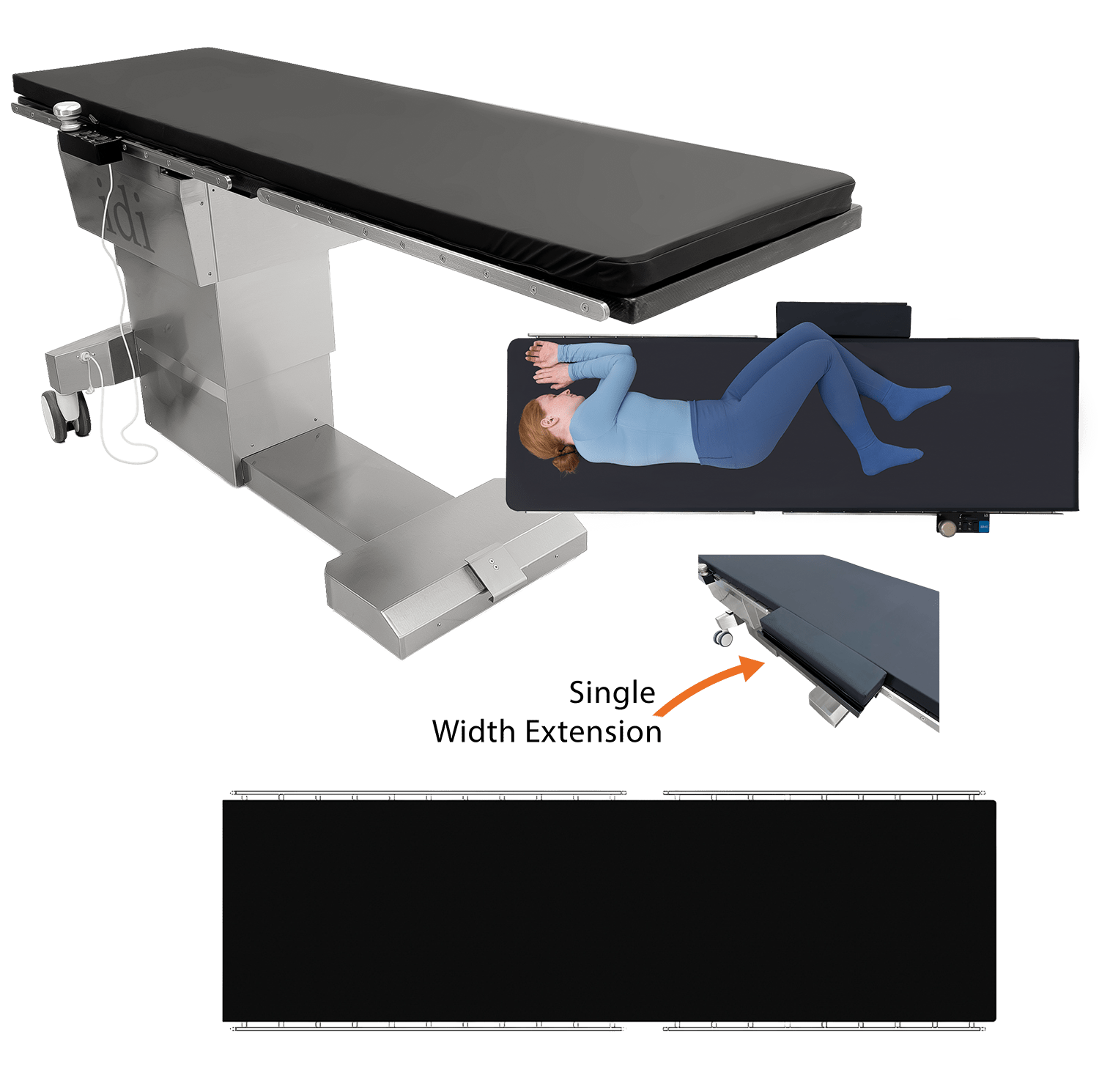

G.I. Width Tabletop
100-4T #A100-3892 (U.S. Accessory Rails)
100-4T #A100-3893 (Metric Accessory Rails)
The G.I. width 24” x 84” rectangular tabletop provides an expanded surface for larger patients in GI and specialized imaging applications.
The table includes full-length integrated side rails for accessory
mounting and one table-width extender.
The high-quality carbon fiber tabletop and 2” thick tabletop pad delivers minimal total x-ray attenuation.

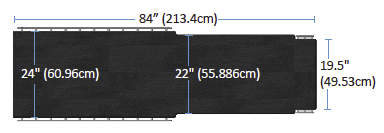

TABLETOP DIMENSIONS
100-4 OPTIONAL ACCESSORIES
Curve Spine Frame C000-1750
Provides maximum lordosis for Laminectomy,
Decompression, Disc Surgery and Microdiscectomy
procedures. Includes hand crank. Patient supports are adjustable to fit different patient sizes.
Clamp-on Accessory Rail A100-1007
Rail is 8.5″ long x 3/8” thick x 1-1/8” high..
Arm Board A310-056
Quick-release, rail mounted. Requires Clamp-on Accessory Rail A100-1007
Headrest Extension A100-2317
Articulating carbon fiber headrest, Attaches to the imaging end of the table. Requires the table to have an X100-2492 style tabletop. 23-1/8” wide x 12” long.
Tabletop Catheter Tray Extension A100-1769
24.25” wide, 30” long. Mounts to pedestal end of table only. The maximum weight this extension can support is 20 LBS or 9 Kgs.
Tabletop Catheter Tray Extension A100-2322
20 3/4” x 27” long. Mounts to imaging end of table only. Requires tabletop X100-2492. The maximum weight this extension can support is 20 LBS or 9 Kgs.
Radiation Shield A610-051
Articulating, rail-mounted. Attaches to table side-rail at base end of table, either side, adjustable. Articulating joint allows shield to conform to table contour. Snap-on upper section above level of tabletop is removable.
Anesthesia Screen Holder C000-0965
Flexible “hoop” style. Mounts directly to A100-2317 Headrest Extension. For use on accessory rails – a pair of rotating side rail clamps, part number C000-0746, are required. Rotating side rail clamps and clamp-on accessory rails are not required if table is ordered with the A100-2317 Headrest Extension.
Peripheral Extension A100-2486
Carbon fiber extension, mounts to imaging end of table only. 22″ wide,, 12” long. Maximum weight for this extension is 25 lbs or 11.4 Kgs. – Requires tabletop X100-2492
IDI Medical Grade Anti-Fatigue Mat C000-1181
24”(610mm) x 66”(1676mm) x ¾” (19mm) Heavy-duty, one-piece construction for high-traffic areas. Safe & non-toxic, contains no plasticizers and will not leach over time. Durable brushed texture. Surface is puncture & abrasion-resistant. Antimicrobial properties for added protection. Stain & chemical resistant. No-curl, beveled edges that reduce tripping potential. Non-slip bottom certified by the National Floor Safety Institute.
VAB Armboard A100-2244
Carbon fiber, one-piece, extra wide armboard for vascular access procedures (body section slides under patient/table pad). Includes strap and pad.
Patient Restraint Strap A100-3731
(For Standard Float Tabletop)
Set of two patient restraint straps with buckle locking mechanism and one pad for patient safety and comfort.
Patient Restraint Strap A100-3883
(For G.I. Width Top)
Patient restraint strap with hooks to attach to accessory rails on each side of the tabletop, a pad for patient safety and comfort and buckles to adjust to the patient girth.
100-4 SPECIFICATIONS
Table movements
- Motorized Elevation
- Manual 4-Way Floating Tabletop
Features
- Cantilevered, carbon fiber tabletop with low x-ray attenuation
- Tabletop dimensions:
• 22” (559mm) x 24” (610mm) x 84” (2134mm) - Unobstructed imaging area:
• 68”/ 173cm
• 80” / 203cm with optional peripheral extension - Motorized Elevation: 30” – 43” (76 -109 cm)
- 4-way manual floating tabletop with panning hand control
- Longitudinal tabletop travel: 32” (81.3 cm)
- Transverse tabletop travel: 8” (20.3 cm)
- Locking swivel casters
- Patient weight capacity: 600 lbs. (272 kg)
- Table weight:800 lbs. (363kg)
- 115/230 VAC operation
- Full functionaliity battery backup
- Warranty: 3 years parts, 3 years labor
Accessories included:
- Wireless panning hand control, rail-mounted
- Wireless pendant hand control
- Tabletop Pad
- Patient Restraint Straps
