100RT
Table for GI and pain management procedures

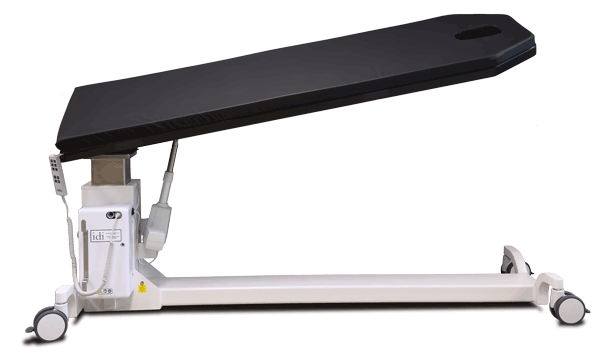

C-Arm table for GI and pain management procedures where motorized elevation, tilt , and lateral roll are required.

  • Motorized elevation
  • Trendelenburg Tilt
  • Lateral Roll

ACCESSORIES INCLUDED

  • Pendant Hand Control
  • Tabletop Pad, 2″
  • Patient Restraint Straps
  • Facial cushion, crescent shape
  • Disposable covers for facial cushion, box of 50
Schedule a live virtual demonstration from our showroom
Have Questions?
Request a Quotation
Service or Parts
IDI User Manuals

Call 978-829-0009 to talk to a product expert

100RT TABLETOPS

BROCHURES


Download the 100RT Brochure

Download the Interventional Pain Management/Spinal Imaging Tables & Accessories Catalog

100RT OPTIONAL ACCESSORIES

Curve Spine Frame C000-1750

Provides maximum lordosis for Laminectomy, Decompression, Disc Surgery and Microdiscectomy procedures. Includes hand crank. Patient supports are adjustable to fit different patient sizes.


Clamp-on Accessory Rail A100-1007
Rail is 8.5″ long x 3/8” thick x 1-1/8” high.


Side-rail clamp C000-0746
Rotating, with socket for attachment of accessories with 5/8 inch circular post.


Scatter Guard radiation shield draping A610-108
For 28” (71cm)wide Optional Tabletop X100-1325 28”x80” (71x203cm) Dimensions: 59” long. 24” draping below tabletop. Draping extends along both sides and head-‐end of table. Supported by fabric section over tabletop. Not for use with arm board A310-056.

Scatter-Guard radiation shield draping A610-096
For for 24” rectangular tabletop X100-995. Dimensions: 59” long. 24” draping below tabletop. Draping extends along both side and head-end of table. Supported by fabric section over tabletop Note: Not for use with arm board A310-056.


Arm Board A310-056
Quick-release, rail mounted. Requires Clamp-on Accessory Rail A100-1007.


Radiation Shield A610-080
Radiation Shield
Fixed shield with integrated clamp system. For use with
tables that do not have side rails. Clamps to table sides or at head-end of table. Snap-on upper section above level of tabletop is removable. Use with 100RTL, 100RT, 100T, 100E tables.


Scatter-Guard radiation shield draping A610-092
For 22” tabletop X100-733 models with 22” tapered-end tabletop with facial cutout. Dimensions: 59” long. 24” draping below tabletop. Draping extends along both side and head-end of table. Supported by fabric section over tabletop. Note: Not for use with arm board A310-056.


IDI Medical Grade Anti-Fatigue Mat C000-1181
24”(610mm) x 66”(1676mm) x ¾” (19mm) Heavy-duty, one-piece construction for high-traffic areas. Safe & non-toxic, contains no plasticizers and will not leach over time. Durable brushed texture. Surface is puncture & abrasion-resistant. Antimicrobial properties for added protection. Stain & chemical resistant. No-curl, beveled edges that reduce tripping potential. Non-slip bottom certified by the National Floor Safety Institute.


Arm Board A310-059
Carbon fiber, shoulder mount (attaches by sliding thin section under patient/table pad), flat. Includes pad and strap.

Facial Cushion, crescent shape  C000-0597
Covers: C000-0598
Facial Cushion, crescent shape. Disposable covers for facial cushion, box of 50.

Hand Control for 100RT Table
K000-0195
Motions controlled: Elevation, trendelenburg, roll. Included with table.

Foot Control for 100RT
A100-1960
Motions controlled: Elevation, trendelenburg, roll.

A100-3731

Patient Restraint Strap A100-3731
Set of two patient restraint straps with buckle locking mechanism and one pad for patient safety and comfort.

100 RT SPECIFICATIONS

Motorized table movements with hand  control

  • Elevation: 32.4 – 44.2” (82 – 112 cm) with 2″ tabletop pad
  • Trendelenburg Tilt: ±15°
  • Lateral Roll: ± 20°

Tabletops

  • Cantilevered, carbon fiber tabletop with  low x-ray attenuation
  • Choice of tabletops:
    • Standard: 24” x 80” (61 x 203 cm)
    • Optional: 22″ x 80″ (56 x 203cm) with tapered end and facial cutout
    • Custom: 28″ x 80″ (71cm x203cm) for larger patients
  • Optional tabletop: 22″ x 80″ (56 x 203 cm) tapered end with facial hole
  • Unobstructed imaging area: 62” (157.5  cm)

Mechanical specifications

  • Locking swivel casters
  • Patient weight capacity: 450 lbs. (204 kg)
  • Table weight: 325 lbs. (147 kg)
  • 120 VAC or 230 VAC operation  (must  specify on order)
  • Battery back-up operation
  • Warranty: 3 years parts, 1 year labor

Accessories included:

    • Pendant Hand Control
    • Tabletop Pad, 2″
    • Patient Restraint Straps
    • Facial cushion, crescent shape
    • Disposable covers for facial cushion, box of 50
