ISR
Interventional / Endovascular Table
The first Imaging table designed for use with Flat Detector C-Arms
Now with Wireless Table-side & Pendant Panning Controls
The ISR is the flagship of our imaging table line, designed to be the preferred imaging solution during interventional and vascular procedures. Featuring true isocentric lateral roll – anatomy on the iso axis remains centered in the fluoroscopic field of view.
The ISR provides a longitudinal tabletop float of 32 inches (81.2 cm) in a very compact platform enabling comprehensive coverage throughout the anatomical imaging area without C-arm movement – and does so in a table with an ideal overall length of only 84 inches (213cm).
With the addition of the optional head extension, the imaging area is increased to 80 inches (203cm).

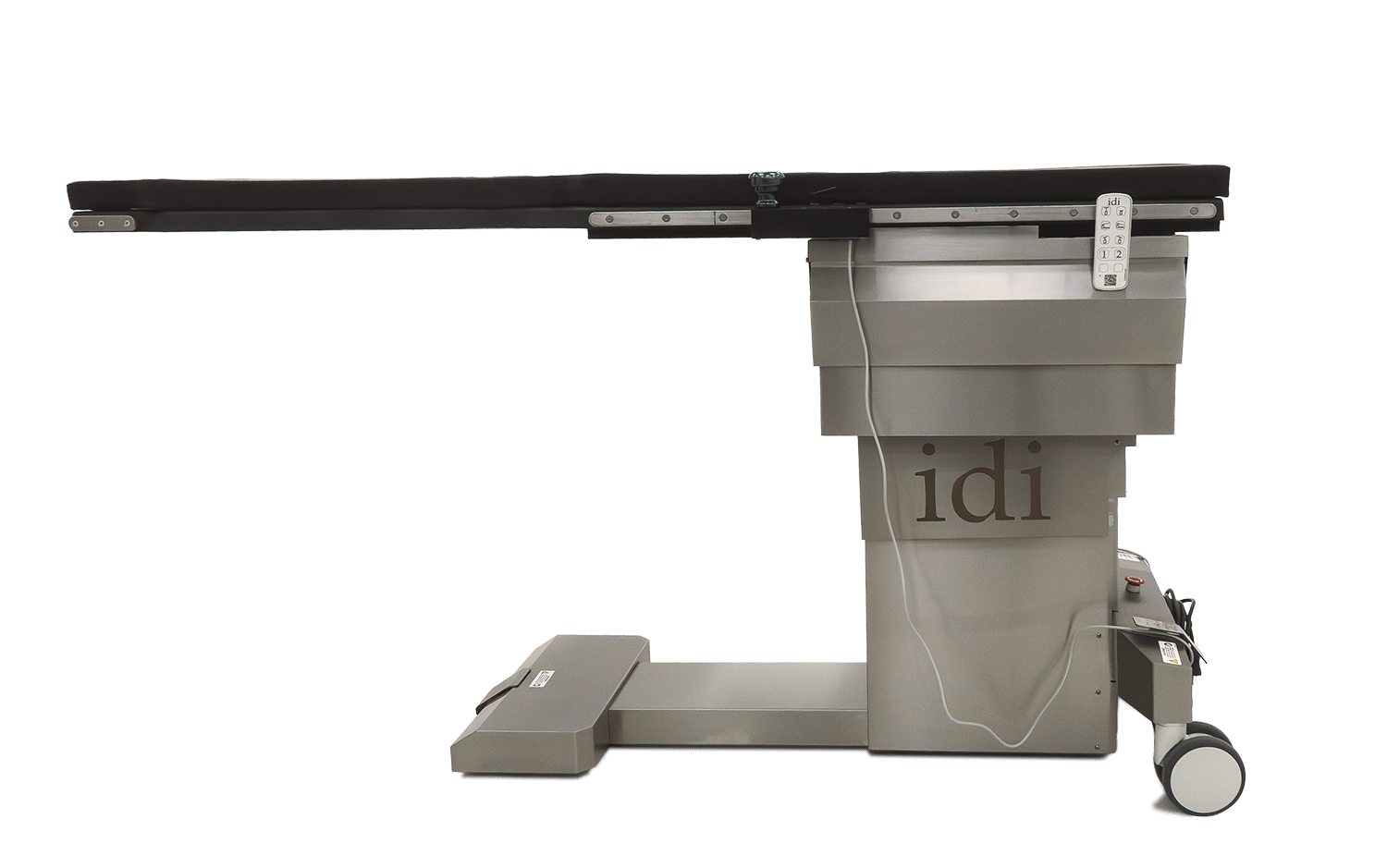

A high-quality carbon fiber tabletop and 2 inch thick tabletop pad deliver minimal total x-ray attenuation
Elevate and tilt functions are fully motor driven – no hydraulics – lower cost of service and no dangerous oil leaks!
ISR
Our most advanced imaging table delivers extended positioning and imaging capabilities

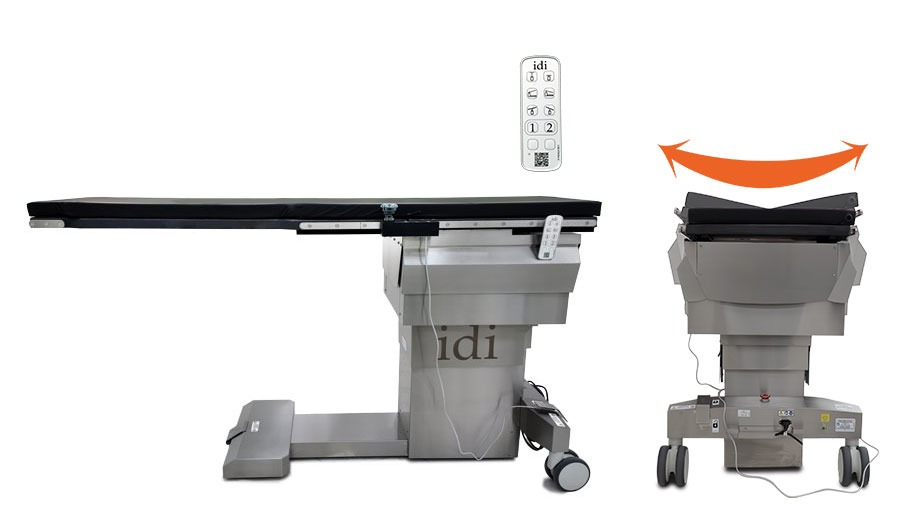

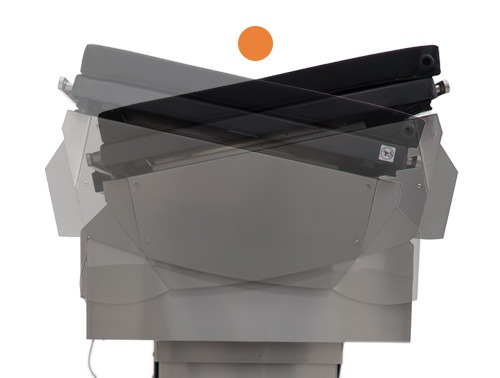

- Isocentric lateral roll Patented design
- 4-way floating tabletop

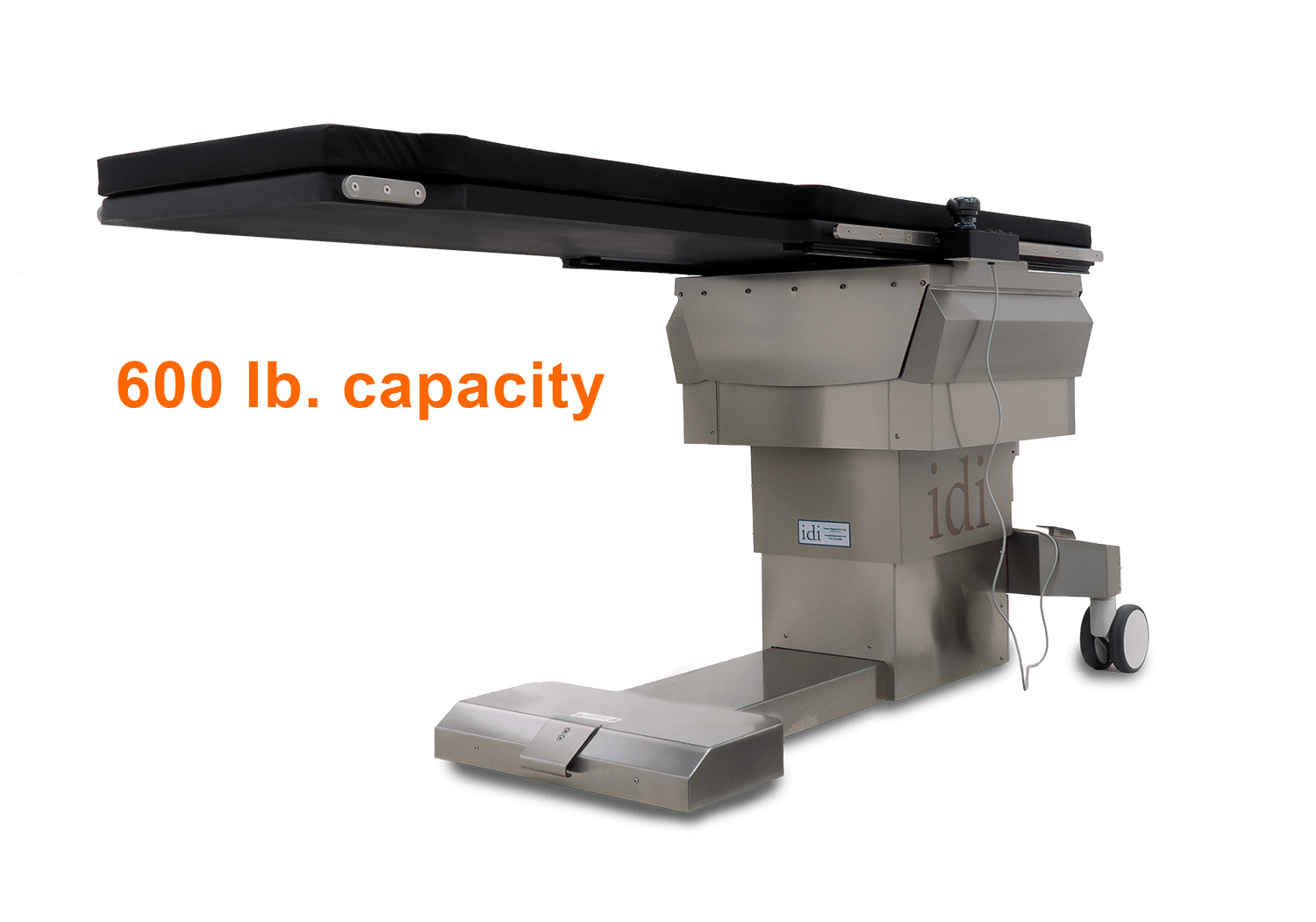

- 600 lbs (272 kg) patient weight capacity
- 80″ of imaging area with headrest
- Trendelenburg tilt ( ±12°)

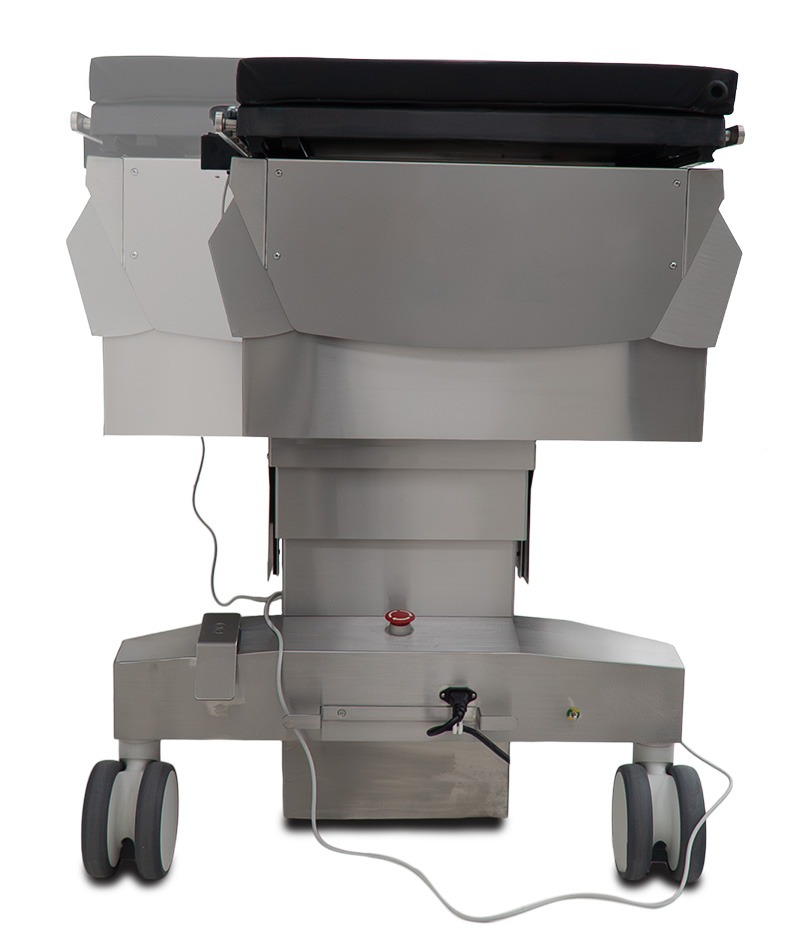

- Transverse float 8″ (20.3cm)
- Motorized elevation 12″ (30.5cm)

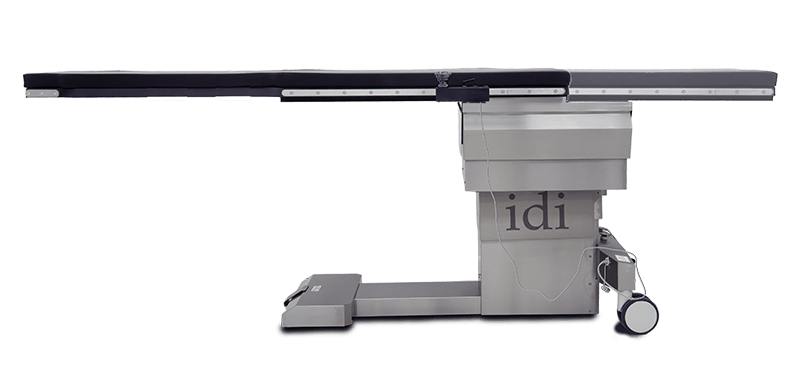

- Longitudinal travel 32″ (81.3cm)
- Stainless steel covers
- Three year parts and labor warranty
Call 978-829-0009 to talk to a product expert
ISR SPECIFICATIONS
Table movements
4-way manual floating tabletop with panning hand control.
- Longitudinal tabletop travel: 32” (81.3 cm).
- Transverse tabletop travel: 8” (20.3 cm).
- Trendelenburg Tilt: ±12° with automatic “stop-at-level” positioning and longitudinal safety lockout when in trendelenburg.

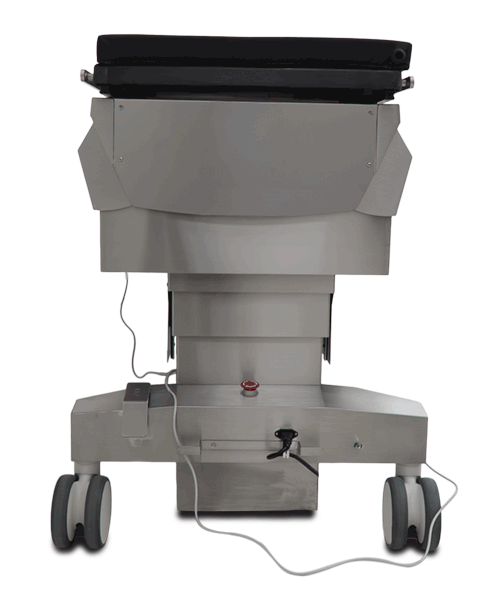

- Iso-centric lateral roll: ±12°
- Transverse float is available regardless of tilt or roll position.
- Dual-wheel caster system with 2-position pedal: Full lock and full unlock for easy transport and positioning
- Automatic locking of longitudinal float when table is not level
- Elevation: 31” – 43” (84-109cm) without tabletop pad.
Imaging Area
- Imaging area at full longitudinal extension = 80″ (203cm) with optional headrest attached and 68″ (173 cm) without optional headrest attached.
Tabletop construction
- Carbon fiber, foam core, low x-ray attenuation
construction
Standard accessories
- Tabletop Pad: 2″ thick flexible polyurethane foam.

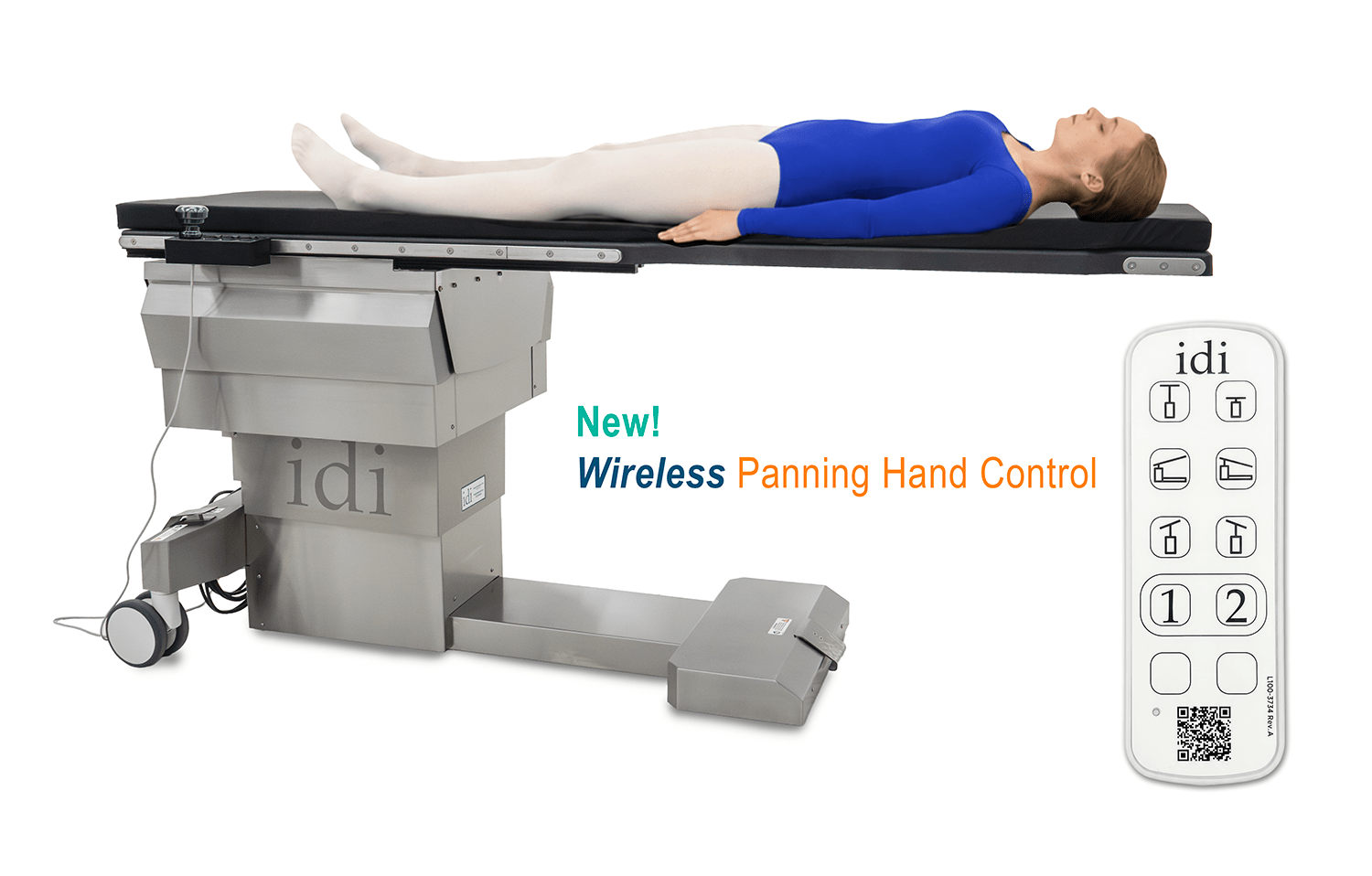

- Wireless panning Hand Control, Rail-Mounted
- Wireless pendant hand control
- Patient Restraint Straps (2)
Tabletop dimensions
- Standard tabletop dimensions: 19.5”/22”/24” X 84”
(49.5cm/55.8cm/60.96cm x 213.3 cm). #X100-2492
Weight:
- Patient weight capacity: 600 lbs. (272 kg) with full table functionality at max. patient weight.
- Table weight: 605 lbs. (274 kg).
Electrical:
- 120VAC < 10amps, 230V optional.
- Full operation from internal battery – includes battery status indicator. Battery capacity 14Ah
- 20’ (6 meter) power cord.
ISR TABLE MOTIONS

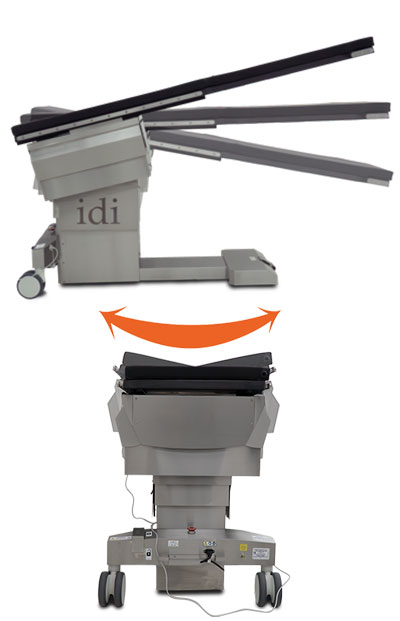

▲ Trendelenburg tilt: ±12

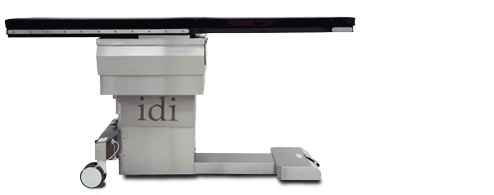

▲ Longitudinal Travel: 32″ (81.3cm)

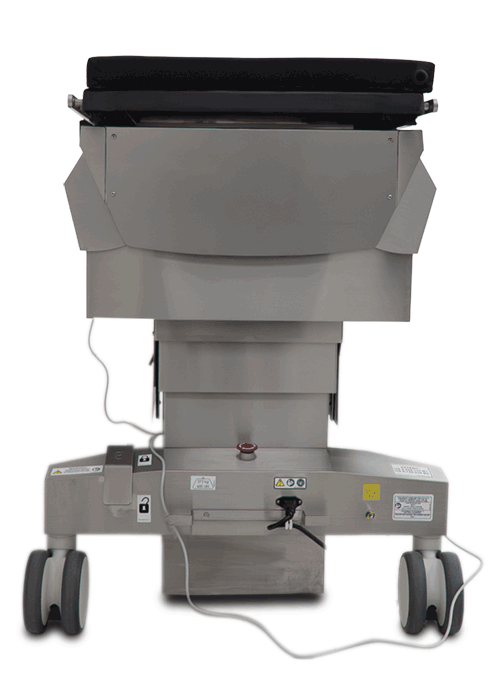

▲ Iso-roll 12°
▲ Transverse travel: 8″ (20.3cm)
ISR OPTIONAL ACCESSORIES
Curve Spine Frame C000-1750
Provides maximum lordosis for Laminectomy,
Decompression, Disc Surgery and Microdiscectomy
procedures. Includes hand crank. Patient supports are adjustable to fit different patient sizes.
Clamp-on Accessory Rail A100-1007
Rail is 8.5″ long x 3/8” thick x 1-1/8” high.
Arm Board A310-056
Quick-release, rail mounted. Requires Clamp-on Accessory Rail A100-1007.
Arm Board A310-059
Carbon fiber, shoulder mount (attaches by sliding thin section under patient/table pad), flat. Includes pad and strap.
Headrest Extension A100-2317
Articulating carbon fiber headrest, Attaches to the imaging end of the table. Requires the table to have an X100-2492 style tabletop. 23-1/8” wide x 12” long.
Tabletop Catheter Tray Extension A100-1769
24.25” wide, 30” long. Mounts to pedestal end of table only. The maximum weight this extension can support is 20 LBS or 9 Kgs.
Tabletop Catheter Tray Extension A100-2322
20 3/4” x 27” long. Mounts to imaging end of table only. Requires tabletop X100-2492. The maximum weight this extension can support is 20 LBS or 9 Kgs.
Radiation Shield A610-051
Articulating, rail-mounted. Attaches to table side-rail at base end of table, either side, adjustable. Articulating joint allows shield to conform to table contour. Snap-on upper section above level of tabletop is removable.
Anesthesia Screen Holder C000-0965
Flexible “hoop” style. Mounts directly to A100-2317 Headrest Extension. For use on accessory rails – a pair of rotating side rail clamps, part number C000-0746, are required. Rotating side rail clamps and clamp-on accessory rails are not required if table is ordered with the A100-2317 Headrest Extension.
Peripheral Extension A100-2486
Carbon fiber extension, mounts to imaging end of table only. 22″ wide,, 12” long. Maximum weight for this extension is 25 lbs or 11.4 Kgs. – Requires tabletop X100-2492
IDI Medical Grade Anti-Fatigue Mat C000-1181
24”(610mm) x 66”(1676mm) x ¾” (19mm) Heavy-duty, one-piece construction for high-traffic areas. Safe & non-toxic, contains no plasticizers and will not leach over time. Durable brushed texture. Surface is puncture & abrasion-resistant. Antimicrobial properties for added protection. Stain & chemical resistant. No-curl, beveled edges that reduce tripping potential. Non-slip bottom certified by the National Floor Safety Institute.
VAB Armboard A100-2244
Carbon fiber, one-piece, extra wide armboard for vascular access procedures (body section slides under patient/table pad). Includes strap and pad.
Patient Restraint Strap A100-3731
Set of two patient restraint straps with buckle locking mechanism and one pad for patient safety and comfort.
WHY THE ISR STANDS OUT FROM THE COMPETITION
600 pound patient weight capacity – Standard
No additional costs or up-charges
Unprecedented 80″ imaging area (with optional headrest)

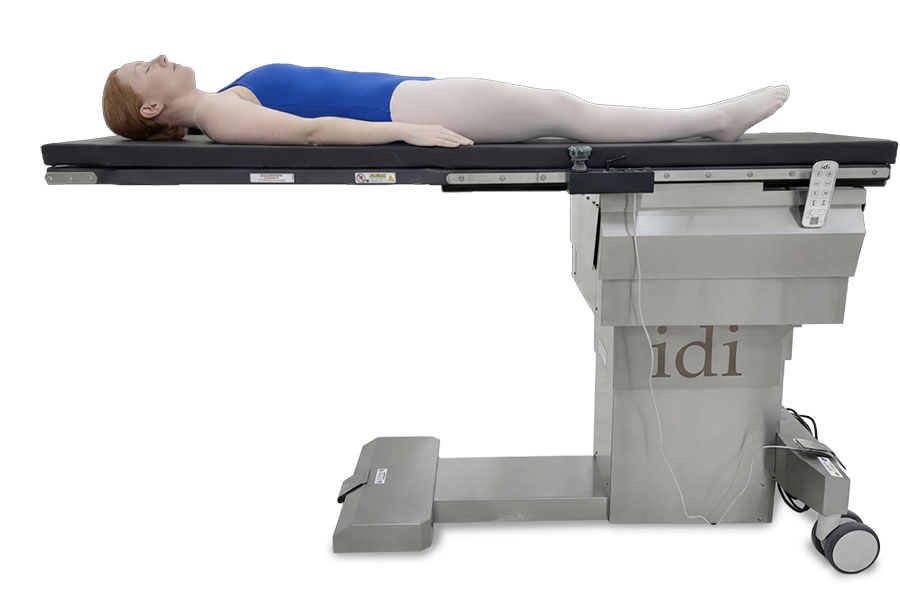

Allows full body imaging of a 6′-8″ patient
Complete table control at your fingertips
Panning and motorized functions are combined into one easy-to-use
control handle. No need to switch between a pendant and panning control
Low-dose table top and pad
Reduces overall dose to patient and staff
Mini rail system on head end of table
Install or remove the headrest or extensions in seconds – no additional accessories required.
The lowest profile base in the industry
For improved C-Arm access
