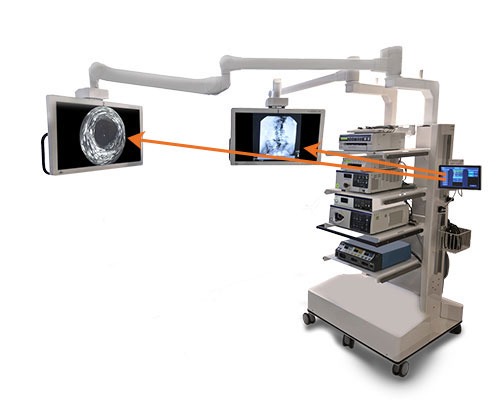

NEW PRODUCT!

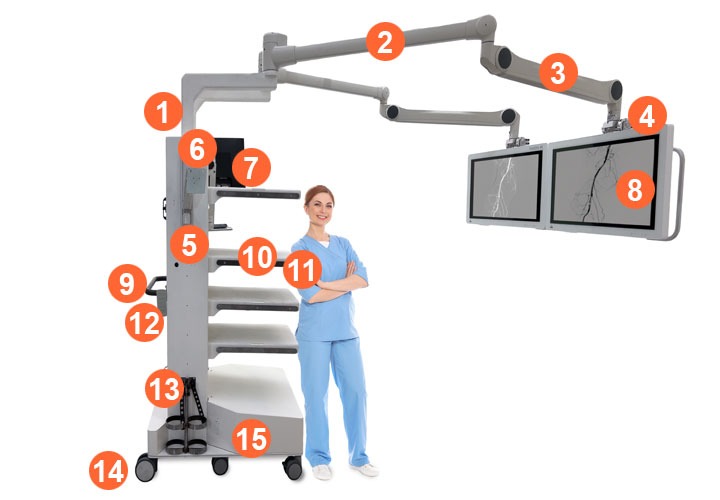

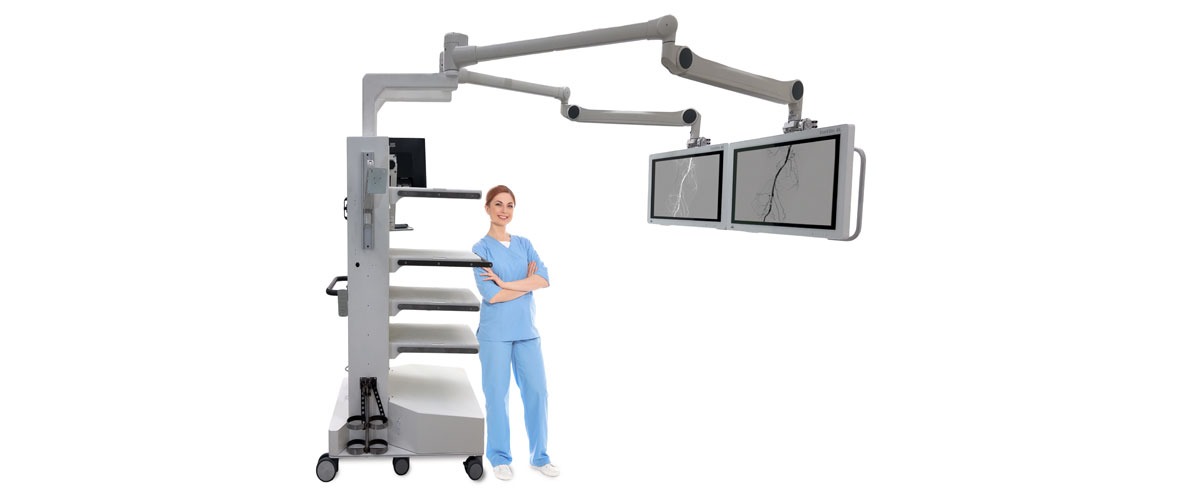

Advanced Surgical Visualization Equipment Management System
1. 9″ (23cm) motorized vertical travel
2. Collapsible Articulating Boom Arms
3. Spring Arms with 89″ (226cm) horizontal reach
4 Tilt Handle with over 360° Rotation
5. Accessory Rails
6. Bluetooth Speaker
7. Easy-to-use touchscreen routing
8. 4k UHD Displays
9. Rear push handles
10. Four adjustable equipment shelves
11. Front push handle
12. Video input connections
13. Lower accessory mount
14. Float, lock and steering casters
15. Internal video router with 1800 W ISO transformer
ilex DUO Advantages in Urology, GI & Vascular surgery
-
- Simple Touch Screen Video Routing controls
- State-of-the-art SDVoE video routing with eight customizable presets
- Video Inputs for all Scopes, C-arms, Ultrasound, PACS, Vitals, and more.
- Displays Multiple Images in Multiple layouts
- Ergonomically positioned displays reduce fatigue
- Adapts to the desired clinical need
- A lower-cost alternative to a ceiling or floor-mounted video system – the new standard
- Large adjustable shelves provide ample space to mount surgery equipment and reduce the number of carts required in the room
- Superior location and viewing angle
- Zero room downtime, planning, or installation cost – Installation in less than an hour from delivery
- Arrives fully assembled
- Streaming support for remote monitoring
- Designed for Cybersecure requirements

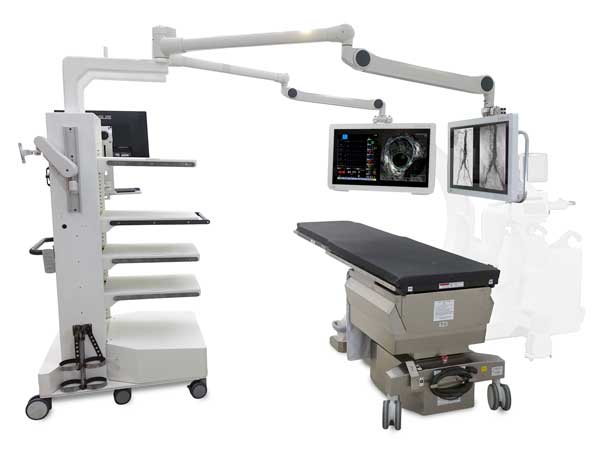

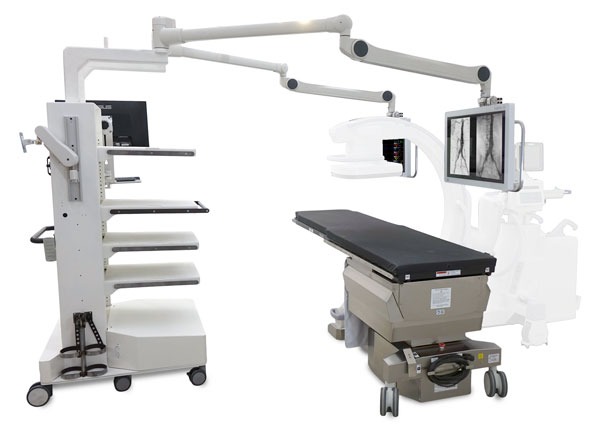

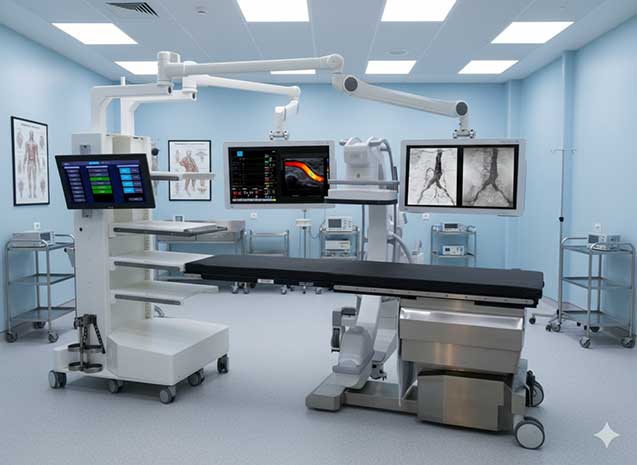

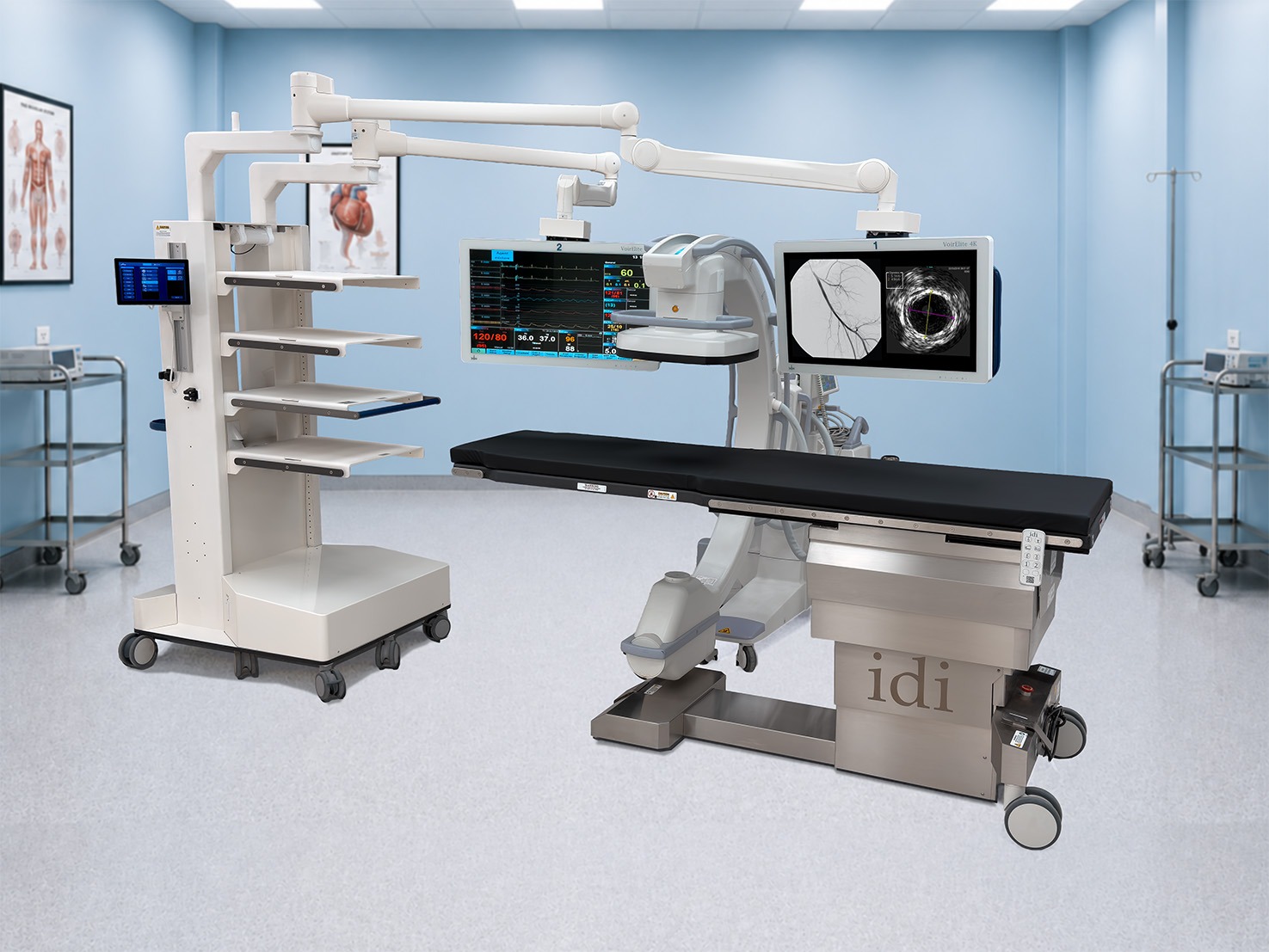

CREATE A COMPLETE ENDOVASCULAR SUITE
-
- Vascular overflow
- Multimodality imaging
- Centralized image viewing
- Reduces table-side clutter
-
“The 4K images look crisper and allow me to
easily see small vessel detail”
– Vascular Surgeon, Arizona
“The 4K UHD monitors really pop”

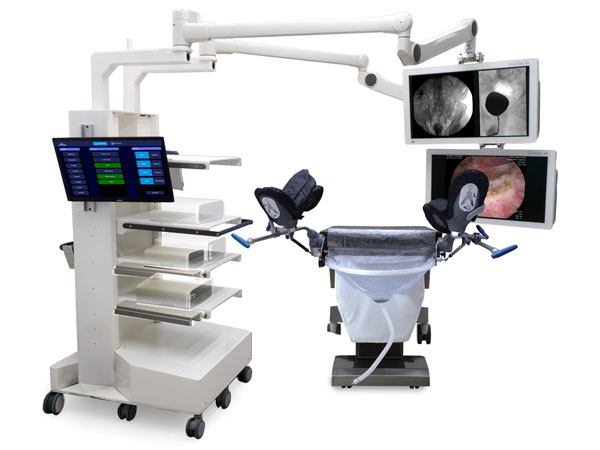

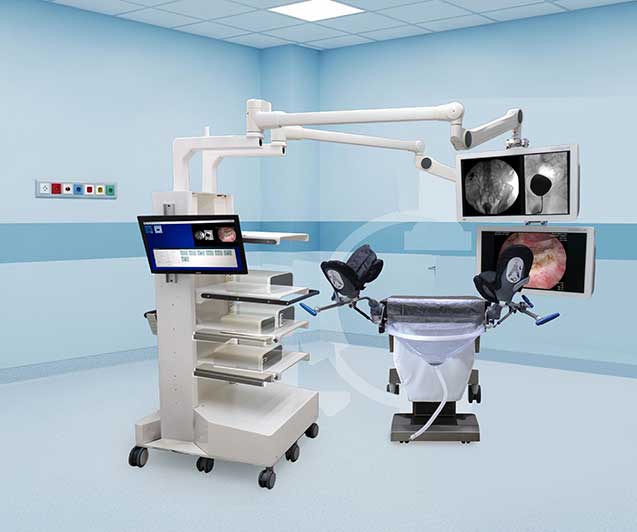

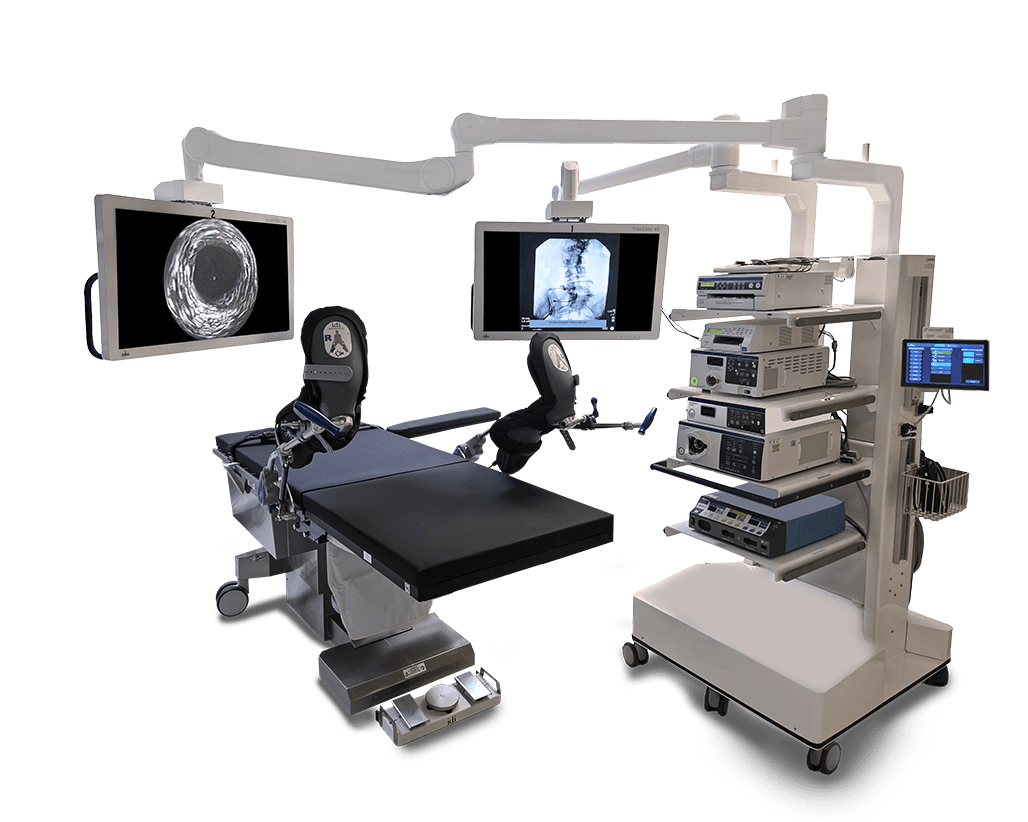

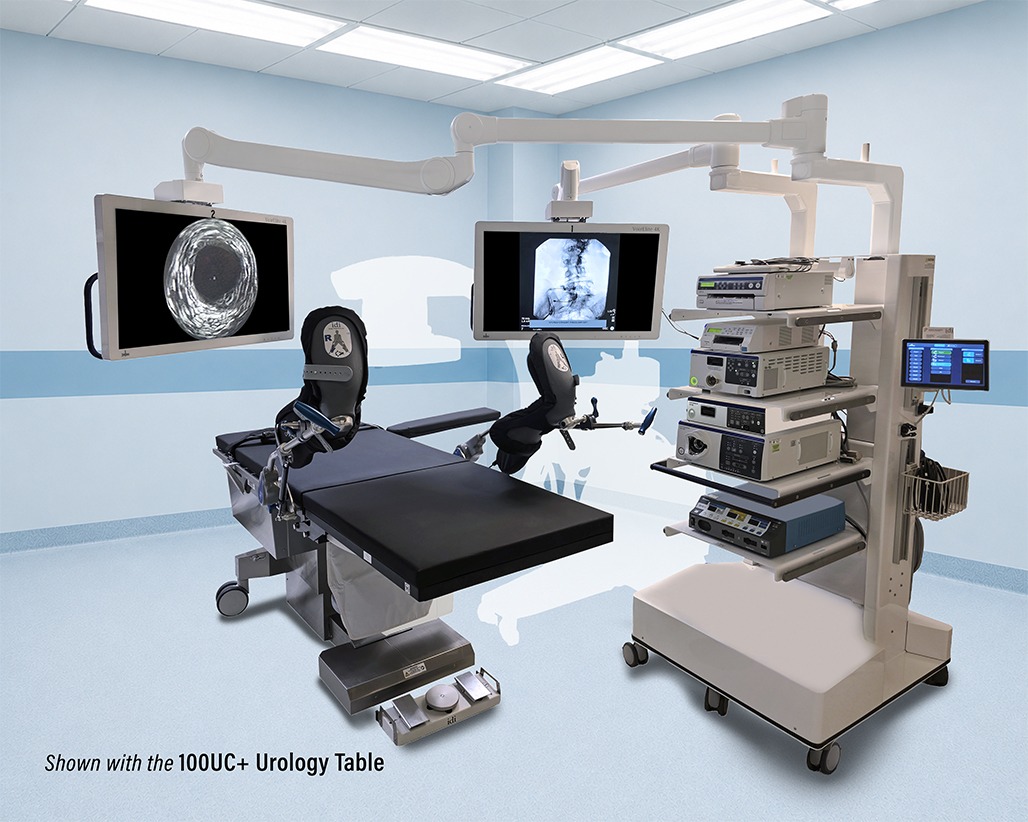

MAKE THE ilex DUO PART OF YOUR COMPLETE UROLOGY SUITE
A C-arm-based mobile solution is more versatile and can provide a dramatic reduction in physician X-ray exposure when compared to a fixed urology table.
-
-
- A complete urology suite
- KUB visualization without moving C-arm
- Ergonomic positioning
- Position monitors for standing or sitting
- Bilateral access
- Enhances room utilization
-

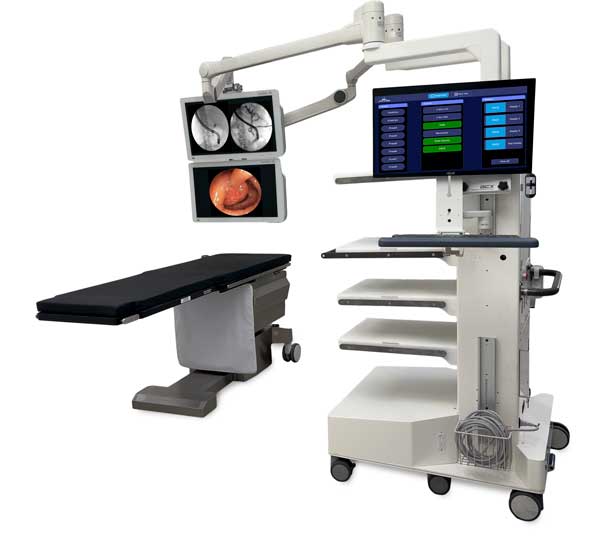

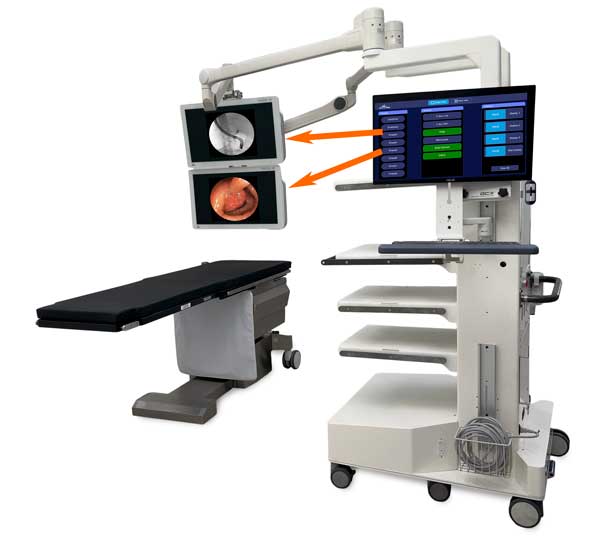

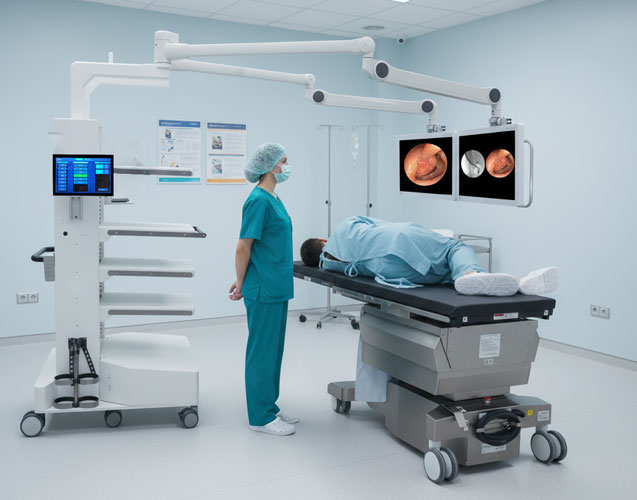

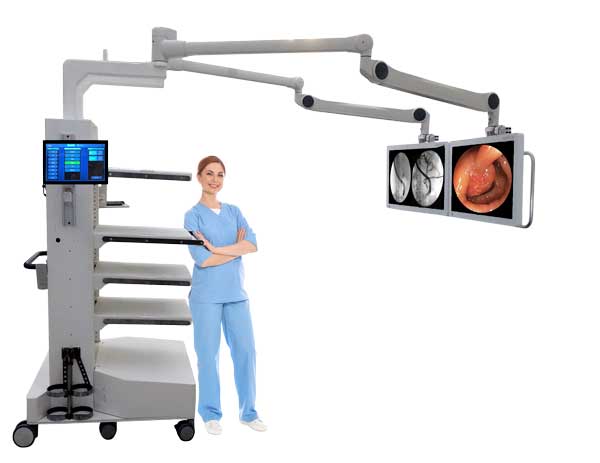

ilex DUO FOR GI / GENERAL SURGERY VISUALIZATION
-
-
- ERCP, EBUS & bronchoscopy
- Enhances table access
- Improves workflow
- Consolidates images
-
“I really like how the ilex DUO allows me to magnify the smaller images from my 2mm scope. ”
Hybrid OR
Urology
Endoscopy
Vascular
ilex DUO SPECIFICATIONS
INCLUDED WITH YOUR ilex DUO SYSTEM:
- Dual-Arm Mobile Display Stand
- Two 4K UHD Displays
- Video Router/Controller with Touchscreen User Interface
- Two protective covers for Displays
- Interconnect Video cable kit
- Utility Basket
Equipment Management Mobile Display System
4K UHD monitors
- Resolution: 3840 x 2160 @60fps
- Aspect ratio: 16:9
- Contrast ratio: 1300:1
- Brightness: 1000 cd/m² maximum
- Number of colors: 1.07 billion
- Latency: <0,1ms
Intuitive touchscreen user interface
Allows any input to be routed to either monitor and any connected inputs to be displayed on a single monitor in a variety of screen layouts, including PIP, PBP, Quad, and 1×3 or 1 over 3.
4K router video input: By design, inputs are modular and can be easily changed and upgraded as technology changes.
- Four HDMI inputs – Accommodates:
- DisplayPort
- DVI
- One VGA – Accommodates:
- RGBHV
- S-Video
- Comp
- SOG
- One 3G/12G HDSI
- Additional inputs are available for purchase.
4K router output:
- Direct Fiber Optic delivery
- Additional outputs are available for purchase.
Monitor arms
Dual-articulating arms with positioning handles for easy Display positioning.
Fully motorized boom height adjustment and balanced articulating Display arms with manual Tilt and rotation of the Displays.
Equipment shelves
Four adjustable equipment shelves: 19” (48 cm) wide x 23” (58 cm) depth. Maximum shelf load per shelf: 65 lbs. (29.5 kg per shelf).
Mounting:
GCX Channel Mounts and Medical Rails support a vast array of accessories.
Transport and storage
Collapsible design for passing through doorways, and storage
Ergonomic transport handles, front and rear, for easy transport and positioning.
Electrical
1800-watt isolation transformer and medical-grade power for connection of ancillary equipment.
North American Version: Requires ~115VAC 60Hz 15 amp dedicated outlet. Maximum allowable combined load (DUO+ equipment on shelves) = 12 amps.
EU Version: requires ~230 VAC 50Hz 10 amp dedicated outlet. Maximum allowable combined load (DUO + equipment on shelves) = 7.5 amps.

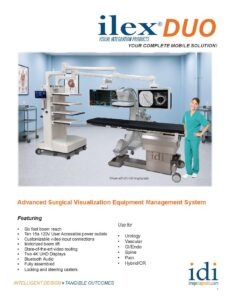

ilex DUO BROCHURES
ilex DUO ADVANTAGES
ilex DUO Advantages
- 89” boom reach
- Locking and steering casters
- Ten 15a 120v User Accessible Power Outlets
- Eight Universal Video Input connections
- Motorized Boom Lift
- State-of-the-art Video Routing – Zero latency
- Two 4K UHD Displays
- Bluetooth Audio
- Arrives Fully Assembled
- Low profile Handle Design
- Fully motorized boom lift with articulating arms for easy manual positioning with up to 9” (23cm) vertical travel and up to 89” (226cm) horizontal extension.
Brilliant 4K Monitors
- High-brightness LED monitors display over-the-table images in a wide variety of layouts.
Input image from any video source
- The iLEX DUO accepts analog and digital signals from multiple sources, including C-Arm, ultrasound, hemodynamics, microscopes, Endoscopes, image guidance, PACS, and more.

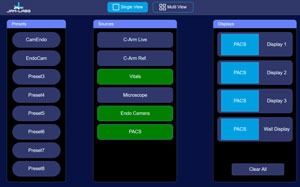

Intuitive multimodal touchscreen routing
Intuitive touchscreen video routing allows easy selection of image location and format. User-specific settings can be saved and recalled for easy procedural setup or customized to meet a specific need.
Portable image suite
- Combine ilex DUO with your C-arm and mobile table for a completely portable suite for urology, vascular, GI, or other applications.
Maximizing space
- The ilex DUO is the perfect alternative solution for small rooms, low ceiling heights, or construction restrictions that make fixed systems impractical. The ilex DUO is ideal for these unique opportunities and can help maximize your room potential.
Lower Cost
- The ilex DUO requires no time-consuming site planning or construction expense and has a substantially lower acquisition cost than fixed room solutions.
Simple installation
- Fixed boom systems require perfect placement and infrastructure changes to satisfy every possible current and future clinical application. The ilex DUO is portable and does not require changes to existing infrastructure.

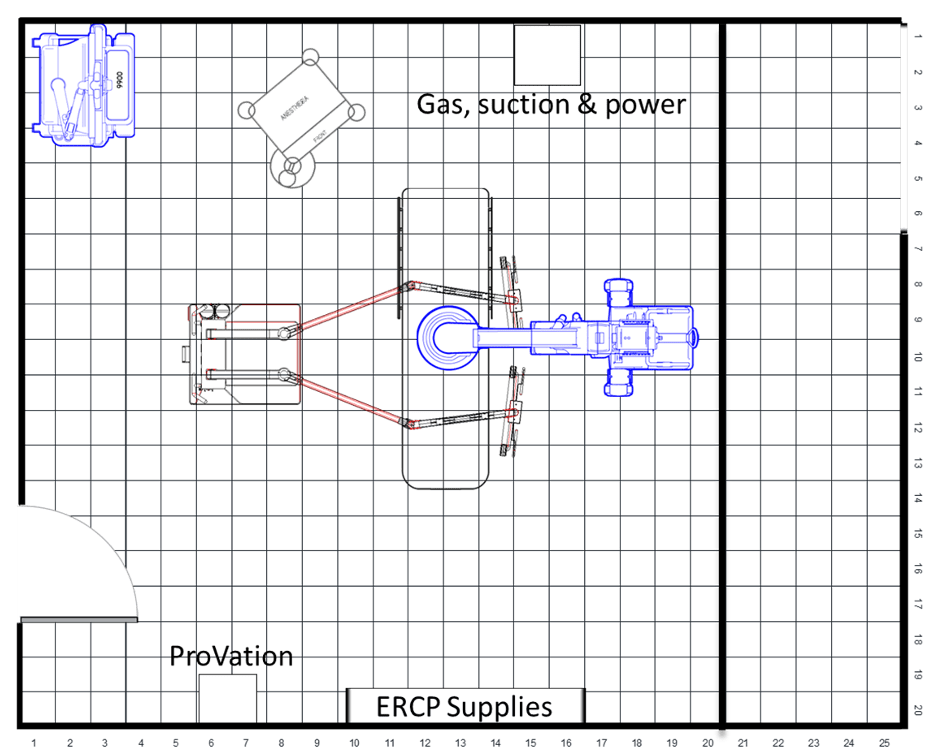

Room layout flexibility
- The ILEX DUO mobility and positioning versatility allow convenient layout of the OR for virtually any procedure.

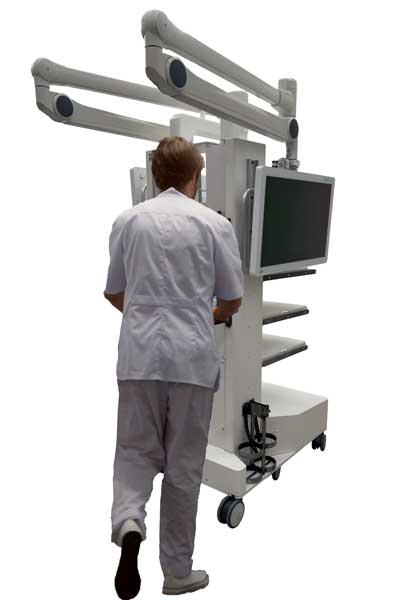

Easy system transport
Easier scheduling
- Fixed room configurations may tie surgeons to specific rooms and limit scheduling options for OR management. The ilex DUO adapts to the room or the procedure at hand and can be configured as a multi-functional clinical procedure cart.
Open architecture
- The ilex DUO accepts virtually all video sources from a wide variety of medical device companies. The system can be reconfigured if your technology changes, making upgrading and keeping your OR state-of-the-art easier and less costly.
ilex DUO OPTIONAL ACCESSORIES

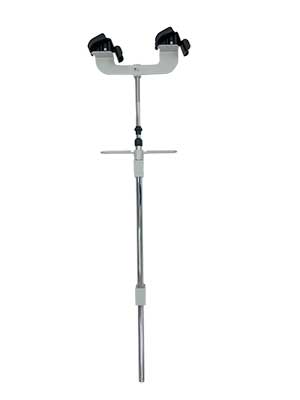

Dual Endoscope Holder

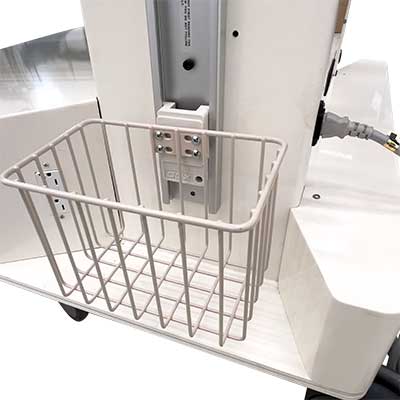

Utility Basket

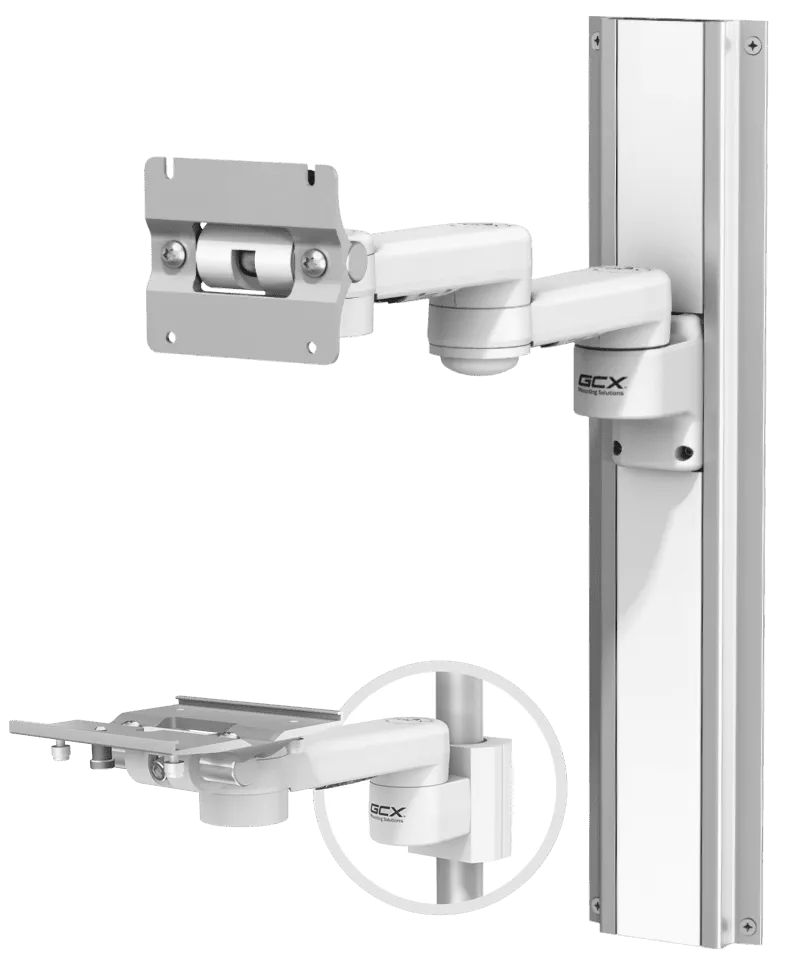

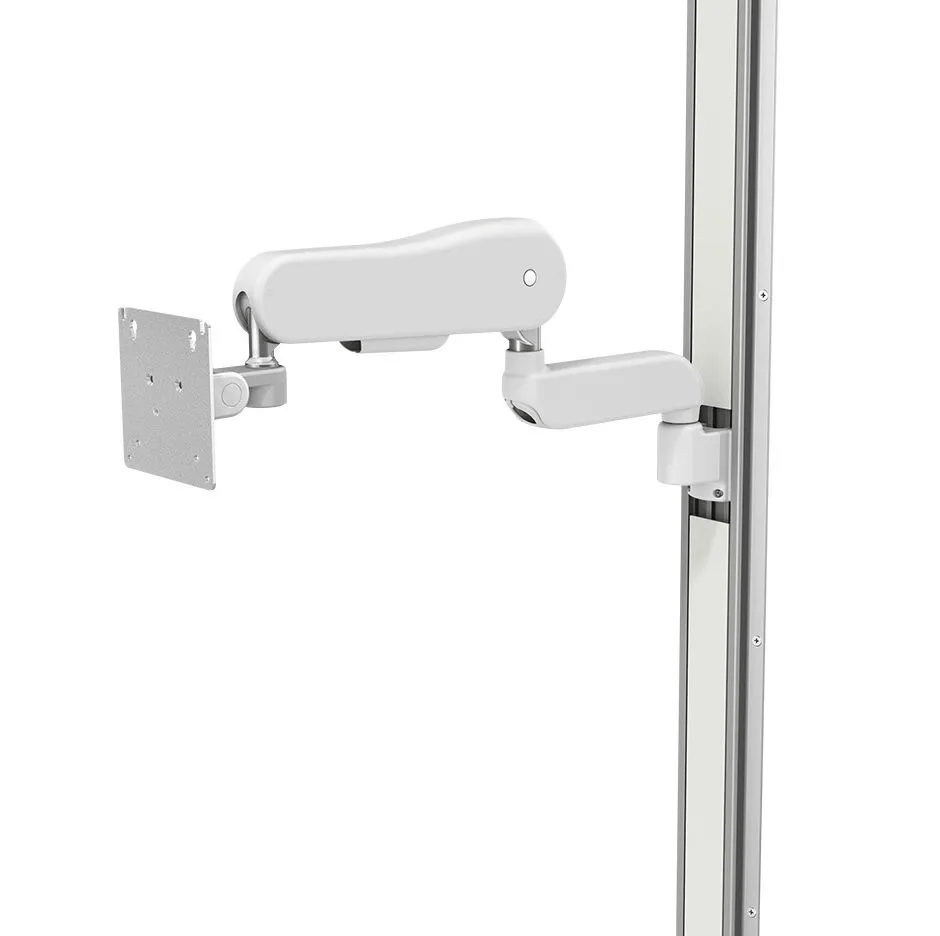

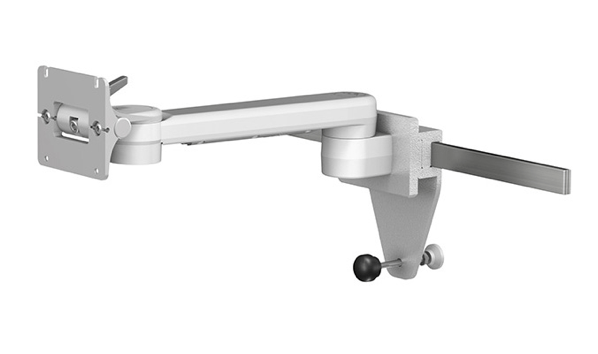

Third Monitor Mount

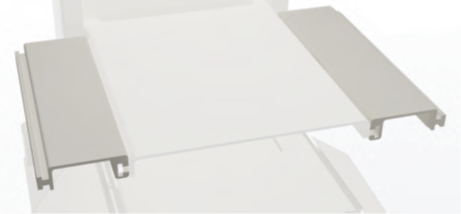

Shelf Extensions (to make a wider shelf)

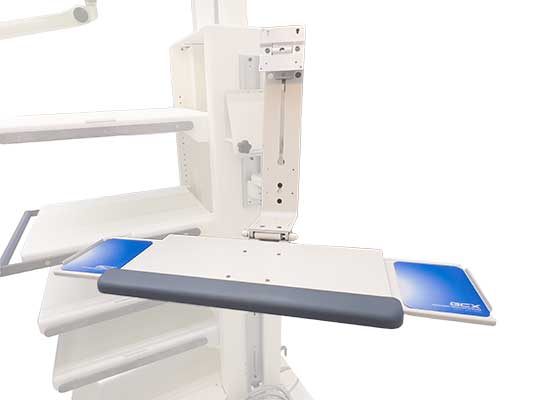

Keyboard Tray
Dual E-cylinder Holders
Remote Video Inputs (No photo)
3rd Surgical Monitor Kit (Includes cabling)
3rd Surgical Monitor Kit (shelf mount)
