IMAGE DIAGNOSTICS, INC.  “IDI”
IDI is a manufacturer of innovative products for surgical, interventional and diagnostic imaging,
including imaging tables, video integration, lighting and suspension systems.

For further information about any of IDI’s products, please submit your request online

Aspect ISR
ISR

The first imaging tables designed for use with FD C-Arms. Helps optimize image quality and dose with a higher travel height and lower tongue profile.

  • Isocentric Lateral Roll
  • Patented design
  • 4-way Floating Tabletop
  • 600 lb capacity
  • 80″ of imaging area with headrest
  • Trendelenburg Tilt ( ±12°)
  • Transverse Float 8″ (20.3cm)
  • Motorized Elevation 10″ (25.4cm)
  • Longitudinal Travel 32″ (81.3cm)
  • Wireless table-side & pendant panning controls
  • 3 year parts/ 3 year labor warranty
  • Stainless steel covers

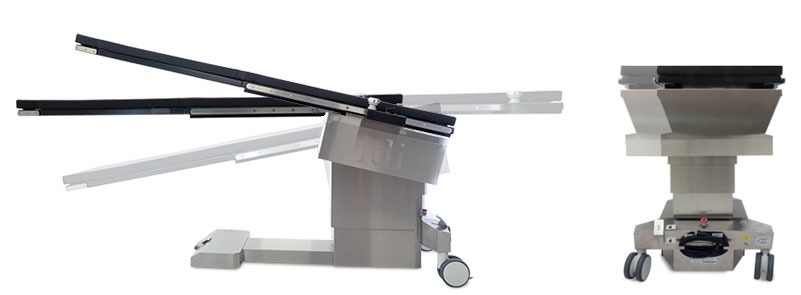

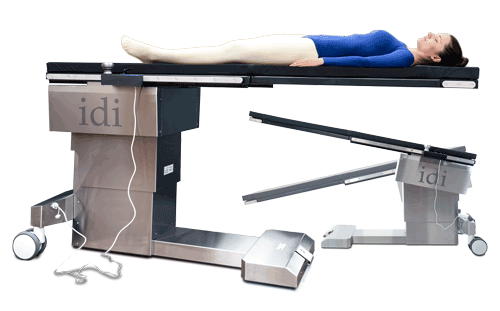

Aspect 100-4T
100-4T

The first imaging table designed for use with FD C-Arms.

  • 4-way Floating Tabletop
  • 600 lb capacity
  • 80″ of imaging area with headrest
  • Trendelenburg Tilt ( ±12°)
  • Transverse Float 8″ (20.3cm)
  • Motorized Elevation 10″ (25.4cm)
  • Longitudinal Travel 32″ (81.3cm)
  • Wireless table-side & pendant panning controls
  • Warranty: 3 years parts/ 3 year labor
  • Stainless steel covers
IDI Aspect 100-4
100-4

The 100-4 is part of the IDI table line designed for C-arm imaging in endovascular or other interventional procedures where a 4-way floating tabletop is required in a non-tilting table.

  • 4-Way Manual Floating Tabletop
  • Motorized Elevation
  • Patient weight capacity: 450 lbs. (204 kg)
  • Table weight: 490 lbs. (222 kg)
  • 120 VAC or 230 VAC operation (must specify on order)
  • Battery back-up operation
  • 3 year parts/ 3 year labor warranty
  • Stainless steel covers
100-4
ISO-DRIVE

The ideal panoramic C-Arm imaging solution for 3D spinal imaging and treatment procedures. The Iso-Drive utilizes IDI’s patented isocentric roll system to maintain spinal positioning during rotation – anatomy on the iso axis remains centered in the fluoroscopic field of view.

  • Cervical Flexion without the use (or cost) of an artifact producing spine frame
  • Unique tapered top provides lower abdominal support for large patients while improving C-arm
  • Spin clearance during 3D imaging in the upper abdominal and neck region
  • Head end slot provide attachment point for arm/wrist sling and restraint
  • 58” of imaging area in a very compact platform
  • Battery back-up operation
  • Warranty: 3 years parts/ 3 year labor
  • Stainless steel covers

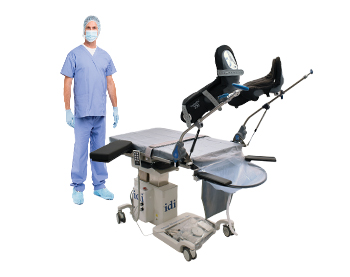

100UC Plus
100UCPlus

Our full-function mobile urology table, featuring motorized four-way travel, elevation, and Trendelenburg Tilt.

The UC Plus provides a large radiolucent imaging area for greater anatomic coverage and easy C-Arm access.

With a 28″ x 46″ (71 x 117 cm) tabletop, large patients can be safely positioned and supported up to the 490 lb. (238 kg) capacity.

The carbon fiber tabletop provides minimal x-ray attenuation over the entire imaging area.

A built-in cassette tray and along with a wide assortment of urologic accessories provide for multi-purpose use in both x-ray imaging and general urologic procedures.

100US
100US

An economical C-arm table for hysterosalpingograms



  • Carbon fiber tabletop with low x-ray attenuation
  • Detachable leg support tabletop extension
  • Unobstructed fluoroscopy imaging area: 22″ x 32″ (56 x 81 cm)
  • Motorized tabletop elevation: 27″-39″
    (66 – 96.5 cm)
  • 24″ x 46″ (61 x 117 cm)  tabletop
  • Patient weight capacity: 450 lbs. (181 kg)
  • Standard US table side-rail: compatible with many lithotomy
    legholders and clamps
  • 120 VAC operation with battery back-up operation
    (230VAC optional)
  • Easy table transport with 5″ (12.7 cm) locking casters
  • Table weight = 375 lb. (170 kg)
  • 3-year parts, 1 year labor warranty

SPINE & 3D IMAGING TABLES

Aspect ISR
ISO-DRIVE

The ideal panoramic C-Arm imaging solution for 3D spinal imaging and treatment procedures!

The Iso-Drive table utilizes IDI’s patented isocentric roll system to maintain spinal positioning during rotation – anatomy on the iso axis remains centered in the fluoroscopic field of view.





  • Cervical Flexion without the use (or cost) of an artifact producing spine frame
  • Unique tapered top provides lower abdominal support for large patients
  • Improves C-arm spin clearance during 3D imaging in the upper abdominal and neck region
  • Head end slot provides attachment point for arm/wrist sling and restraint
  • 58” of imaging area in a very compact platform
  • Battery back-up operation
  • Warranty: 3 years parts/3 year labor
  • Stainless steel covers
Aspect 100-4T
ASPECT 360 MOBILE IMAGING PACKAGE

The most advanced 3D imaging table! The first mobile, fully programmable, motorized table with joystick control and user definable position presets.





  • Unrestricted 360° imaging
  • Fully motorized tabletop with fingertip panning control overcomes heavy patient limitations found in other manual tables
  • LCD handset provides advanced motion control; three user programmable position presets
  • Carbon-fiber accessory rails minimize artifacts and easily facilitate attachment of accessories and head supports for optimal 3D imaging of the cervical spine
  • Short – low profile base provides excellent C-arm access and positioning
  • Optional width extension accessory allows for an additional 4″/100mm in table width (2″/50mm per side) to easily position large patients

PAIN MANAGEMENT IMAGING TABLES

100RTL
100RTL

C-Arm table for GI and pain management procedures where tilt, roll and longitudinal tabletop movement is desired.



  • Motorized elevation
  • Trendelenburg Tilt
  • Lateral Roll
  • Longitudinal tabletop movement (power driven)
100RT
100RT

C-Arm table for GI and pain management procedures where motorized elevation, tilt, and lateral roll are required.

  • Motorized elevation
  • Trendelenburg Tilt
  • Lateral Roll
100-T
100T

C-arm table for pain management and other procedures where only motorized elevation and Trendelenburg tilt is required.

  • Motorized elevation
  • Trendelenburg Tilt
100E
100E

C-arm table for pain management and other procedures where motorized elevation is the only movement required.

  • Motorized elevation

SURGICAL TABLES

Smarter Practico
SMARTER PRACTICO

The Smarter Practico surgical table lets you focus on the task at hand while superior ergonomic design improves the comfort of the whole surgical team.

Comfort leads to concentration, confidence, and better co-operation.

That’s efficiency! LEARN MORE

Smarter Practico

Choose from a variety of options:

  • 8 leg plates
  • 6 back sections
  • 8 head rests
  • 3 columns
  • 2 bases
  • Footswitch
  • Fifth wheel
  • Over 50 patient positioning accessories



VIDEO INTEGRATION SYSTEMS

MDS Video Integration System
MDS

Advanced Video Integration for multi-modality image visualization in Urology, GI & Vascular surgery.

  • Tablet controlled routing on 26″ HD monitors
  • Input all cameras, C-arms, Ultrasound, PACS
  • Displays reference, live and camera images at the same time.
  • Ergonomically positioned images reduce fatigue
  • The MDS adapts to the desired clinical need, monitor arms are moved to the desired location and retracted up out of the way when finished
  • Lower cost alternative to ceiling or floor mounted video boom systems
  • Zero room down time, planning or installation cost
  • Modular in nature, easy to update as technology advances
  • Adjustable shelves provide ample space to mount video components and in most cases reduces the number of carts required in the room
  • Reduces the ceiling mount conflicts between the lights, monitor arms and equipment booms while still presenting clinical images in a superior location and viewing angle

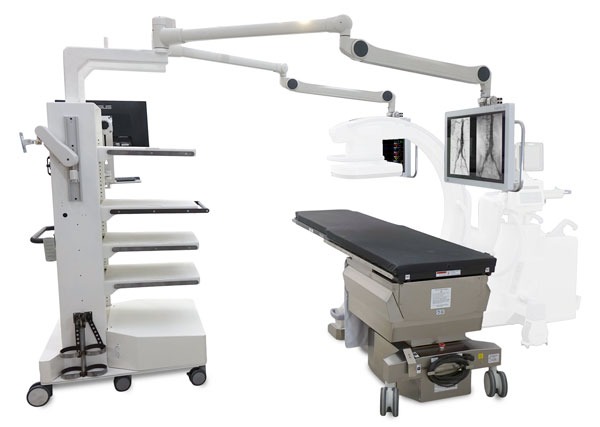

ilex55 Video Integration System
ilex

The first mobile large field 4K UHD display solution with built in integration.

A State-of-the-Art Display Solution for Vascular, GI and Neurosurgery

ilex systems are state-of-the art mobile diagnostic systems. Designed to meet the imaging requirements of interventional procedures in hospital and office-based labs. With ilex, less complex interventional procedures can be performed in any room without the cost associated with fixed integration.

  • 55” UHD 4K monitor with 12 bit processing and expanded color pallet.
  • Display up to four 27” diagonal equivalent 1920 x 1080p HD images at
    one time.
  • Bonded glass technology – spectacular black levels.
  • Four times the pixels of an HD monitor – sharper images.
  • Reduces the need for magnification – dose reduction with less eye strain.
  • Intelligent image management – customize and manage image sources
ilex D
ilex D

Designed with the office-based lab in mind; the ilex D puts high level video integration within the reach of every budget.

  • Additional applications include use as a secondary monitor in Hybrid and IR/Cath lab installations
Skilex
SKilex

The SKilex ceiling-mounted video integration system provides the powerful visualization found in hybrid operating rooms, ASCs, OBLs and image-guided interventional suites.

  • The SKilex 55” 4K, ultra-high-definition monitor increases clinical detail and ease of visualization when compared to a 27″ HD monitor
MONITOR-CART-27R-WITH-HD-RECORDER
Monitor Carts 32″ UHD 4K or 32″ HD monitor with optional recording capability

Designed for use as a large table-side monitor.

  • Directly connect to C-arm workstations and cameras
  • Digital connectivity with no scaling or conversion required*
  • Available in HD and 4K recording
Monitor-Carts-32-UHD-4K-or-32-HD
Monitor Carts With 32″ UHD 4K or 32″ HD monitor

Designed for use as a large table-side monitor.

  • Directly connect to C-arm workstations and cameras
  • Digital connectivity with no scaling or conversion required*
  • Options for HD and 4K recording
ilex32 Video Monitor
Utility Cart

Utility cart with accessory rail.



  • The perfect complement for motorized C-arm control panels or rail-mounted accessory devices

SURGICAL LIGHTS


From SIMEON Medical

ISR G2
Sim.LED 7000

Premium surgical lighting for challenging procedures

SIMEON HighLine surgical lights deliver the benefits of cutting edge LED technology. Patented Sim.POD modules generate a large light emitting surface with a uniform beam of light. This bundling and overlapping of light rays creates ideal illumination in any situation. SIMEON innovation is not limited to the LED technology; lighting controls are intuitive, painted surfaces are anti-bacterial (reduces germs by > 99.999%).

  • Technology: Patented reflector technology delivers uniform light intensity, a large depth of focus and an outstanding level of shadow free illumination.
  • Durability: Glass front face – will not cloud over time. Aluminum Chassis for superior heat
    transfer and LED longevity – rugged construction, 60,000+ hour life span!
  • Security: 10 year warranty!*



100-4T-G2
Sim.LED 5000

Premium lighting for challenging procedures

SIMEON HighLine surgical lights deliver the benefits of cutting edge LED technology. Patented Sim.POD modules generate a large light emitting surface with a uniform beam of light. This bundling and overlapping of light rays creates ideal illumination in any situation. SIMEON innovation is not limited to the LED technology; lighting controls are intuitive, painted surfaces are anti-bacterial (reduces germs by > 99.999%).

The aluminum housing resists impact damage while improving LED heat transfer. A glass face retains optical clarity under repeated exposure to harsh cleaners. Lights are available in single or multi-color versions. The triangular design allows two light heads to nest side-by-side, providing a single large light field over the patient.



ISR G2
Sim.LED 700

For use in Ambulatory Surgery Centers and Outpatient settings

As the largest surgical light in the BusinessLine, the Sim.LED 700 offers the greatest light intensity. With 160,000 lux, it ensures that the surgical field will be ideally illuminated so that the surgeon has an optimum view of everything.

ISR G2
Sim.LED 500

For use in Ambulatory Surgery Centers and Outpatient settings

Sim.LED 500 combines great cost-effectiveness and perfect light performance with virtually shadow-free illumination of the OR field – its dimmability allows illumination intensities of up to 140,000 lux.

ISR G2
Sim.LED 450

120,000 LUX
For use in Ambulatory Surgery Centers and Outpatient settings

Sim.LED 450 combines great cost-effectiveness and perfect light performance with virtually shadow-free illumination of the OR field – its dimmability allows illumination intensities from 36,000 up to 120,000 lux. Ideal OR light for any situation.

ISR G2
Sim.LED 4500

The Sim.LED 4500 is the ideal light for outpatient and plastic surgery.

  • Continuously variable for individual light setting
  • Uniform light field thanks to patented reflector technology

RADIATION PROTECTION

PROTEGO
PROTEGO Radiation Protection System for Cath Labs

Comprehensive Radiation protection for Interventionalists and Staff

A compact radiation barrier system for use in cardiac cath labs. The Protego system was designed to eliminate the requirement of heavy protective aprons typically worn by Physicians, Fellows and Staff during interventional procedures while greatly extending protection to exposed areas normally not protected by shielding material.

Compass Flex
COMPASS FLEX Mobile Suspension System

Radiation Shield, Exam Light and Monitor Mount on wheels.

The Compass Flex™ Suspension System provides the tools you need in your mobile imaging suite. Two flexible arms provide radiation shielding and lighting, and the central post can accommodate up to two video monitors. Best of all, the Compass Flex Suspension System is mobile, making it a low-cost, instant addition to any C-arm set up.
